Connecting the TV Signal Source When You Have an
Existing Setup
This section describes how to connect the computer to an existing setup for your TV signal
source.
Wall to VCR to TV, using coaxial cable
1 Disconnect the coaxial cable from the input to the VCR, and connect it to the input of a
coaxial cable signal splitter (not included; available at electronics stores).
2 Connect two coaxial cables to the splitter outputs.
3 Connect one of these cables to the input of the VCR, and the other to the TV connector
on the back of the computer.
A
B
D
E
F
G
H
J
C
C
A
B
D
E
F
C
C
C
C
H

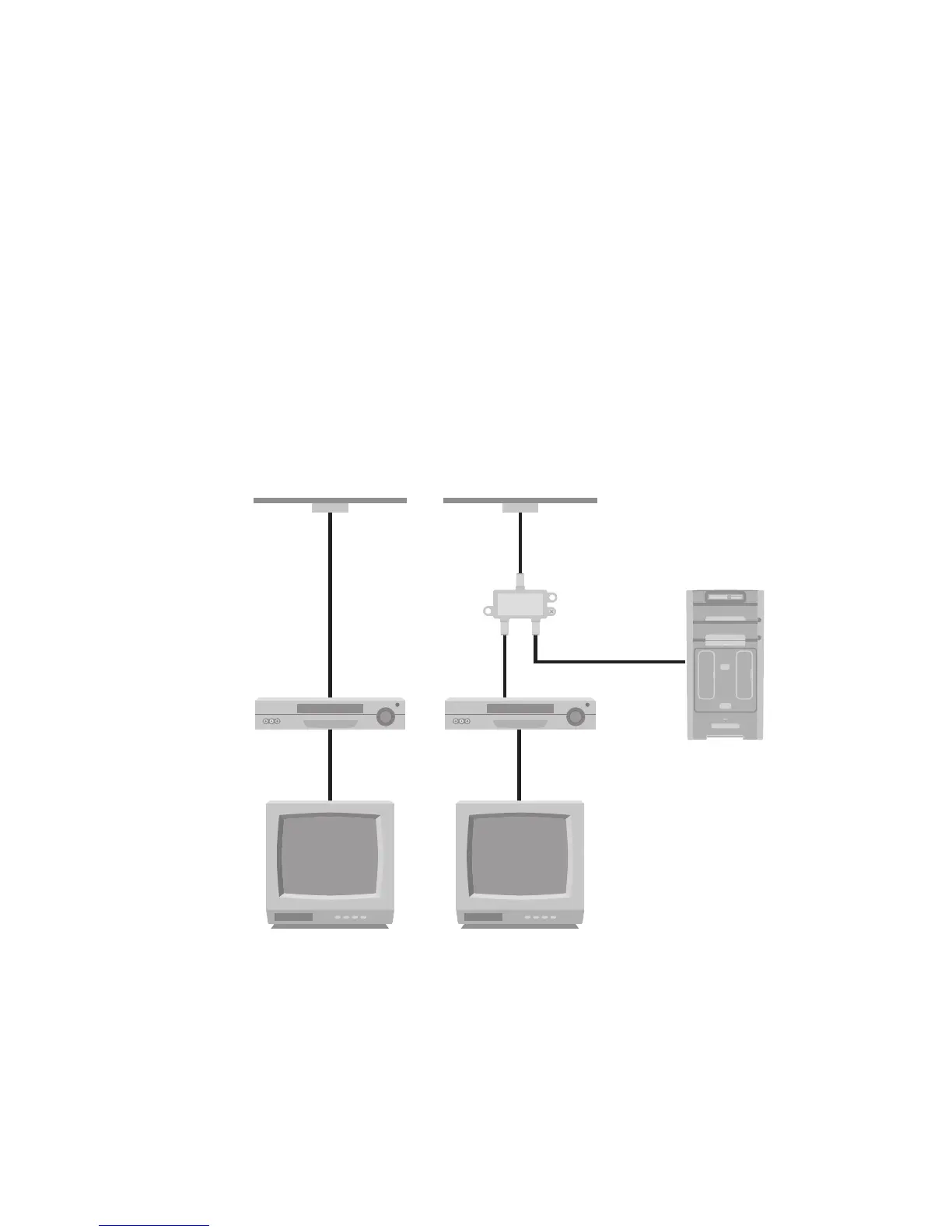

Existing setup Setting the computer with a splitter
A Wall
B Cable outlet
C Coaxial cable
D VCR In
E VCR Out
F TV In
G Splitter In
H Splitter Out
J TV In on back of
computer
