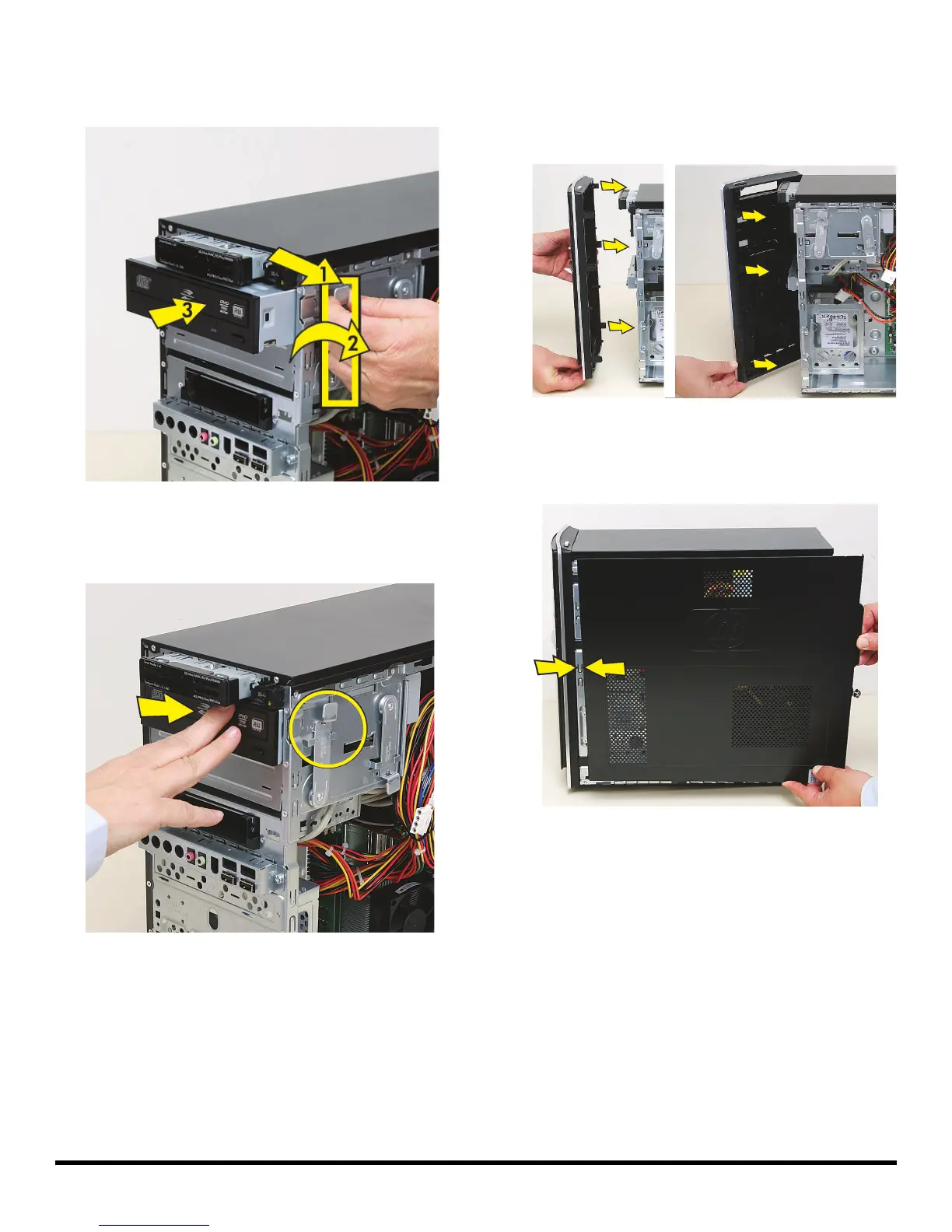

537487-001 — Removing and Replacing an Optical Disc Drive 7
3 Pull out the optical drive latch (1), swing it to the
right (2), and release it into the hole labeled 2 on the
computer; then, push in the drive (3).
4 Push the drive completely into the computer, until the
optical drive latch locks it into place in the hole
labeled 2 on the computer.
5 Hold the front panel over the front of the computer,
and then press the left side of the front panel, inserting
the tabs into the computer holes. Swing the right side
of the panel toward the computer, inserting the panel
tabs, and then press it into the computer.
6 Hold the side panel over the side of the computer with
the front edge of the panel about 2.5 cm (1 inch) from
the front of the computer.
To Next Page
