6 571044-001 — Removing and Replacing the Memory Card Reader

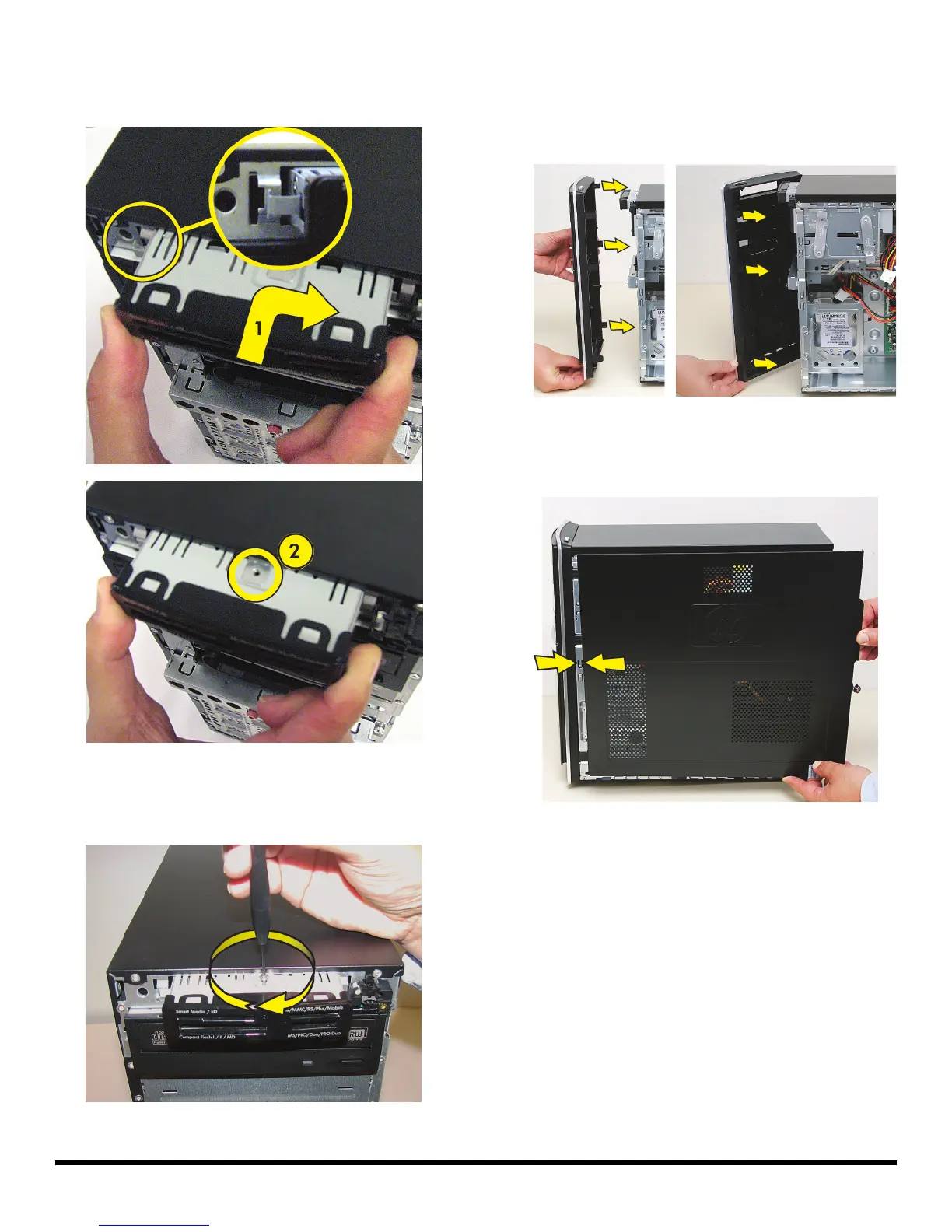

3 Slide the reader in and slightly to the right to lock the
tab into the slot (1) and to align the screw hole on the
top of the reader with the computer screw hole (2).
4 Insert and tighten the screw that secures the reader in
the computer.
5 Hold the front panel over the front of the computer,
and then press the left side of the front panel, inserting
the tabs into the computer holes. Swing the right side
of the panel toward the computer, inserting the panel
tabs, and then press it into the computer.
6 Hold the side panel over the side of the computer with
the front edge of the panel about 2.5 cm (1 inch) from
the front of the computer.
