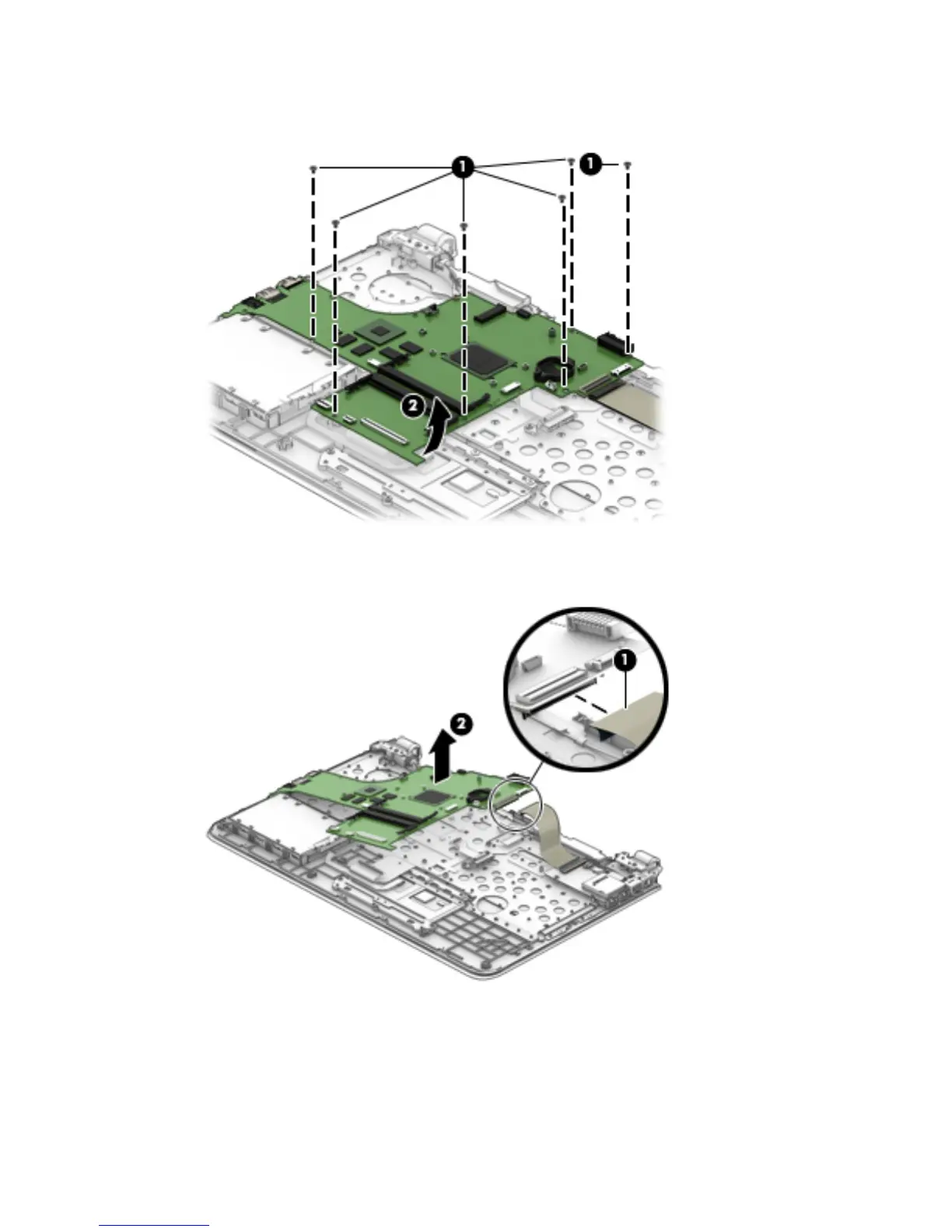

3. Lift the right side of the system board, and then lift the right side of the system board up to gain access
to the USB board cable and connector underneath (2).
4. Disconnect the USB board cable from the connector under the system board (1), and the remove the
system board from the computer (2).
Reverse this procedure to install the system board.
Component replacement procedures 65
