Label Description
11 Rear USB port
12 Power connection*
* Use only with the power adapter supplied by HP.
Control panel buttons

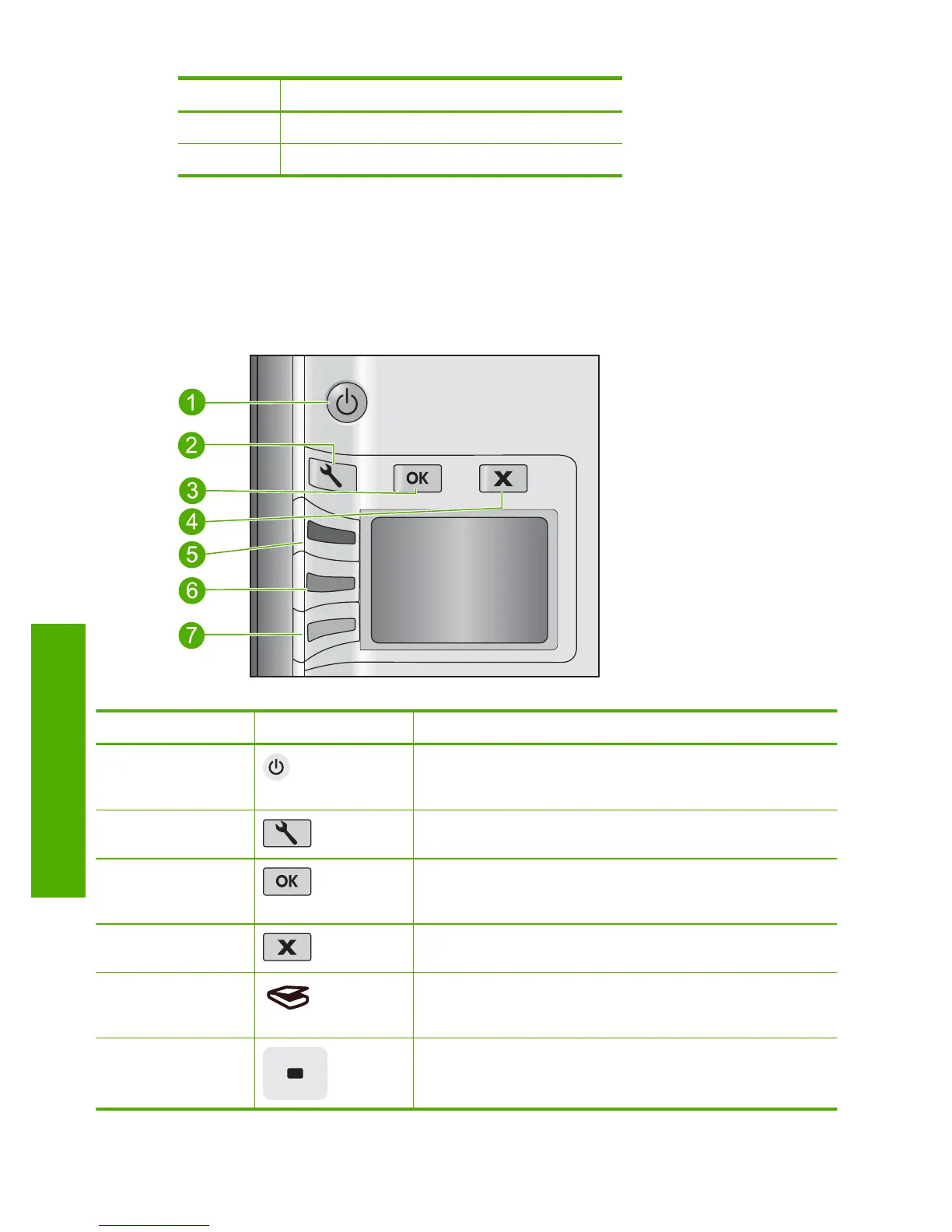

The following diagram and related table provide a quick reference to the HP All-in-One
control panel features.
Label Icon Name and Description
1 On: Turns the product on or off. When the product is off, a
minimal amount of power is still used. To completely remove
power, turn off the product, and then unplug the power cord.
2 Settings: Opens the copy settings menu. When a memory
card is inserted, this button opens the photo settings menu.
3 OK: Confirms the copy or photo settings. In certain situations
(for example, after clearing a paper jam), this button resumes
printing.
4 Cancel: Stops a task (such as scanning or copying) or resets
settings (such as Quality, Size, and Copies).
5 Scan/Reprint: Opens the Scan/Reprint menu. When a
memory card is inserted, this button advances to the next
photo on the memory card when pressed.
6 Start Copy Black: Starts a black-and-white copy. When a
memory card is inserted, this button acts as a previous image
button.
Chapter 2
(continued)
