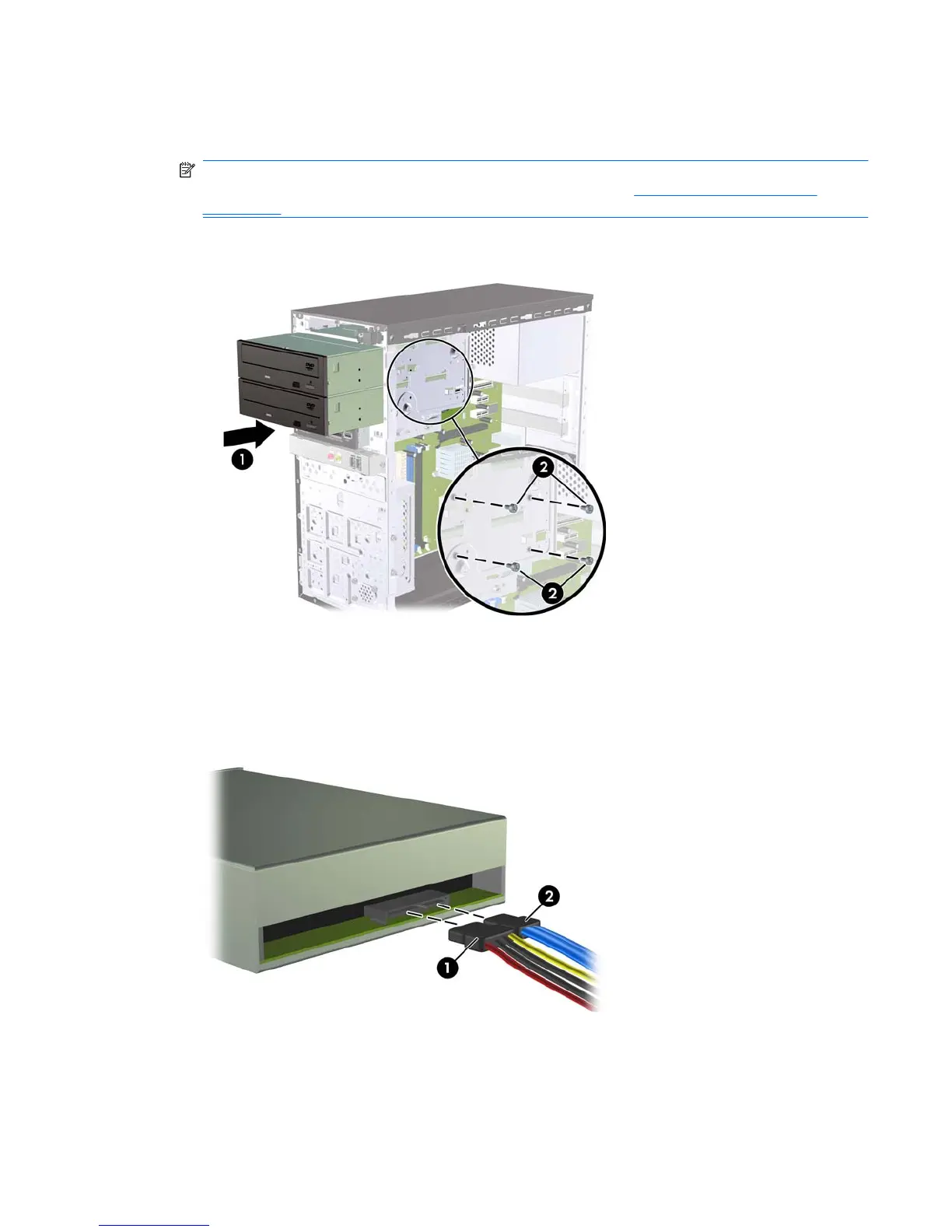

9. Slide the drive in through the front of the chassis (1) until the bezel on the drive is evenly aligned
with the computer front bezel and install the two M3 metric retainer screws (2) as shown in the
illustration below.
NOTE: Extra drive retainer screws are provided on the interior of the front bezel if needed. The
M3 metric retainer screws for optical drives are black. Refer to
Installing Additional Drives
on page 14 for an illustration of the retainer screws location.
Figure 17 Installing the Optical Drive
10. If the system configuration includes only one optical drive, connect the SATA data cable to the
white system board connector. If you are adding a second optical drive, connect the SATA data
cable to the light blue or orange system board connector.
11. Connect the power cable (1) and data cable (2) to the rear of the optical drive.
Figure 18 Connecting the Power and Data Cables
12. Replace the front bezel and access panel.
13. Reconnect the power cord and turn on the computer.
14. Lock any security devices that were disengaged when the access panel was removed.
Installing Additional Drives 17
