4. Remove the battery (see Battery on page 63).
5. Remove the bottom door (see
Bottom door on page 70).
6. Remove the fan (see
Fan on page 90).
7. Remove the heat sink (see
Heat sink on page 91).

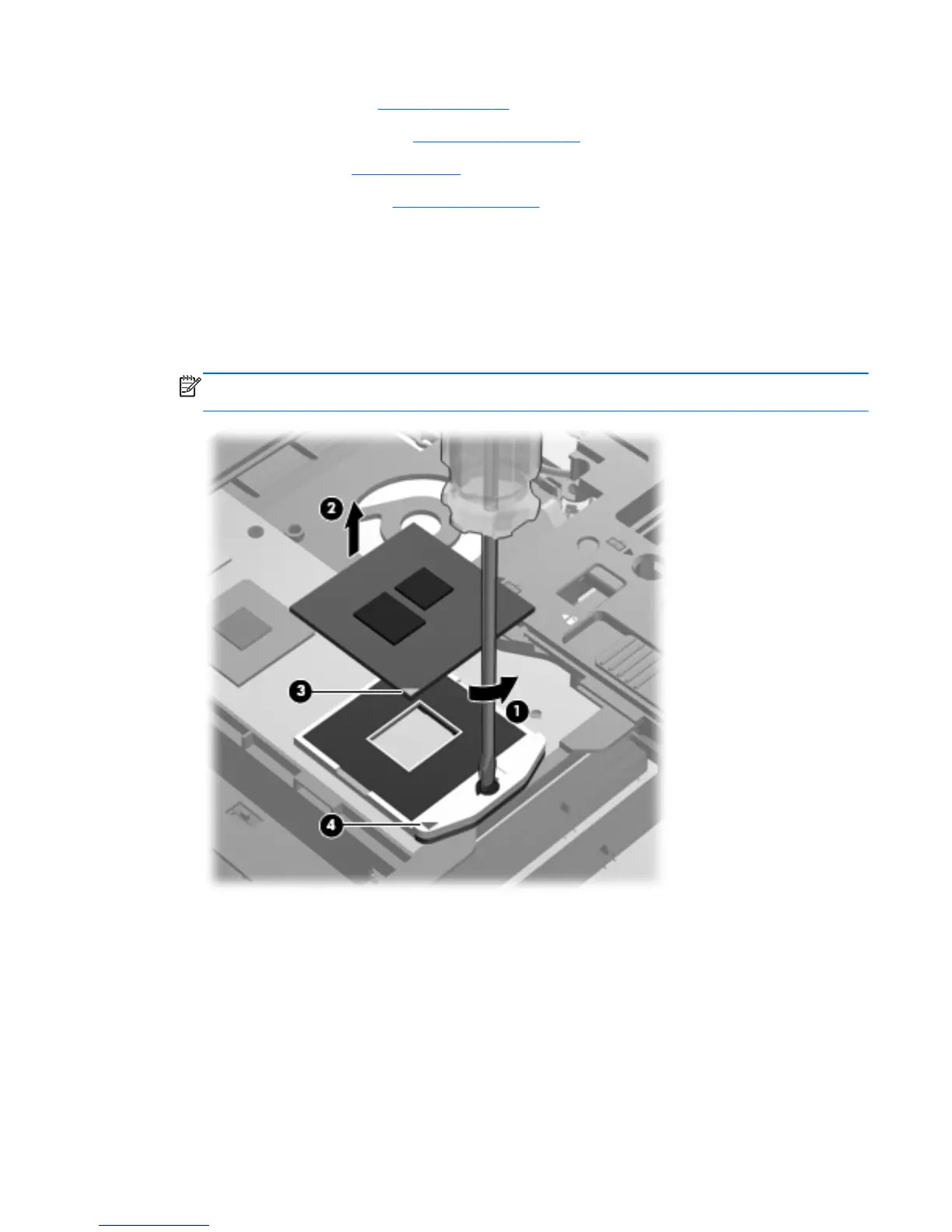

Remove the processor:
1. Position the computer upside-down with the front toward you.
2. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn
counterclockwise until you hear a click.
3. Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle (4) embossed
on the processor slot when you install the processor.
Reverse this procedure to install the processor.
Component replacement procedures 95
