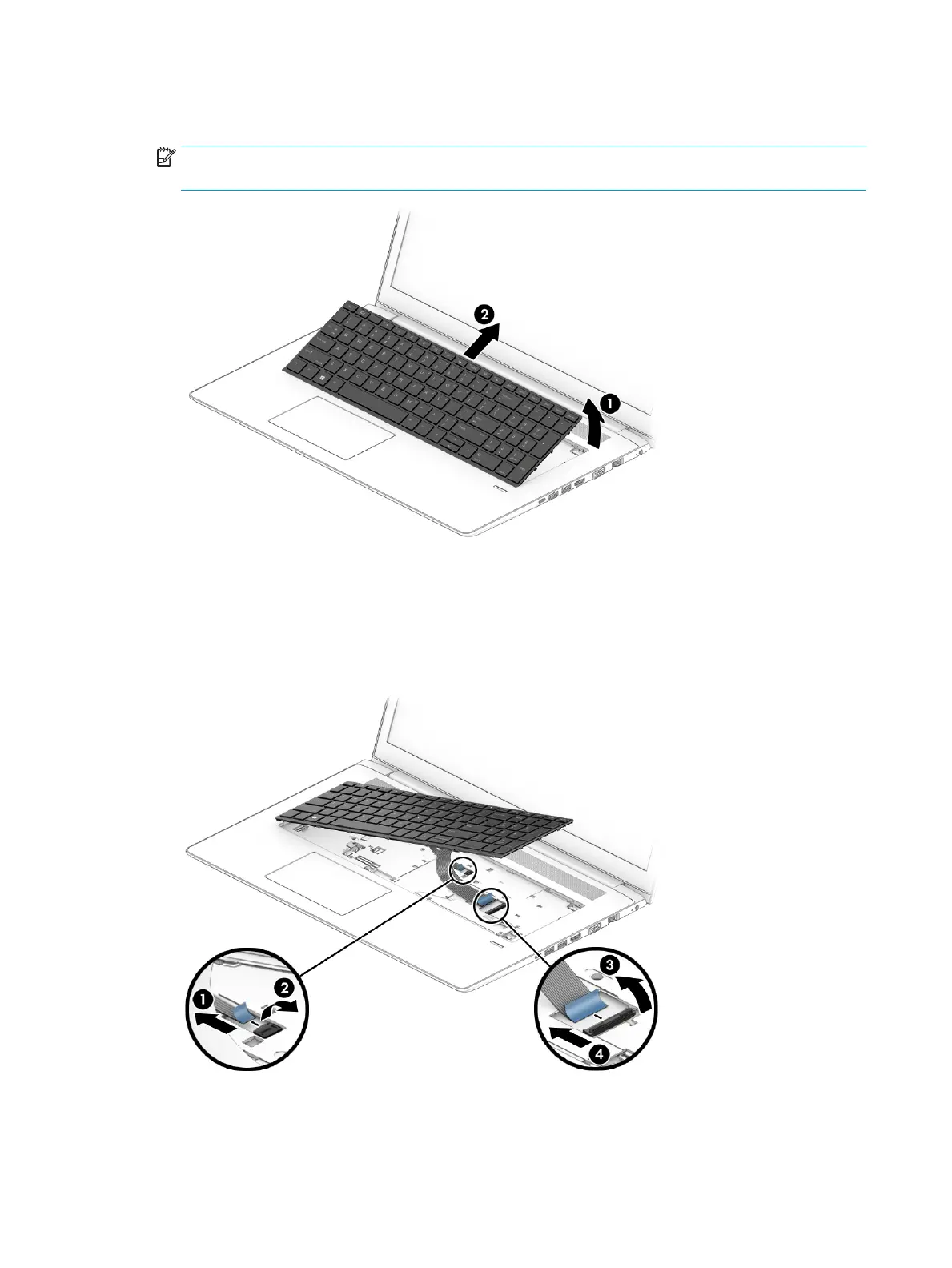

3. Lift the top of the keyboard upward (1), and then rotate the keyboard (2) so you can access the cables
and connectors underneath.
NOTE: A cable (or cables) connect the bottom of the keyboard to the system board. Make sure not to
prematurely pull the cables out of the system board connector(s).
4. If applicable, disconnect the backlight cable by lifting the ZIF connector latch (1), and then disconnecting
the cable from the system board connector (2).
5. Disconnect the keyboard cable by lifting the reverse ZIF connector latch (3), and then disconnect the
keyboard cable from the system board (4).
6. Remove the keyboard.
Reverse this procedure to install the keyboard.
42 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
