Power connector and cable
Description Spare part number
Power connector and cable L01952-001
Before removing the power cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the following components:
a. Service door (Service doors on page 31).
b. Hard drive (Hard drive on page 37)
c. Keyboard (Keyboard on page 40)
d. Top cover (Top cover on page 44)
e. Card reader board (Card reader board on page 57)
f. Battery (Battery on page 58)
g. Display assembly right hinge (Display assembly – non-touch on page 65 or Display assembly –
non-touch on page 65)

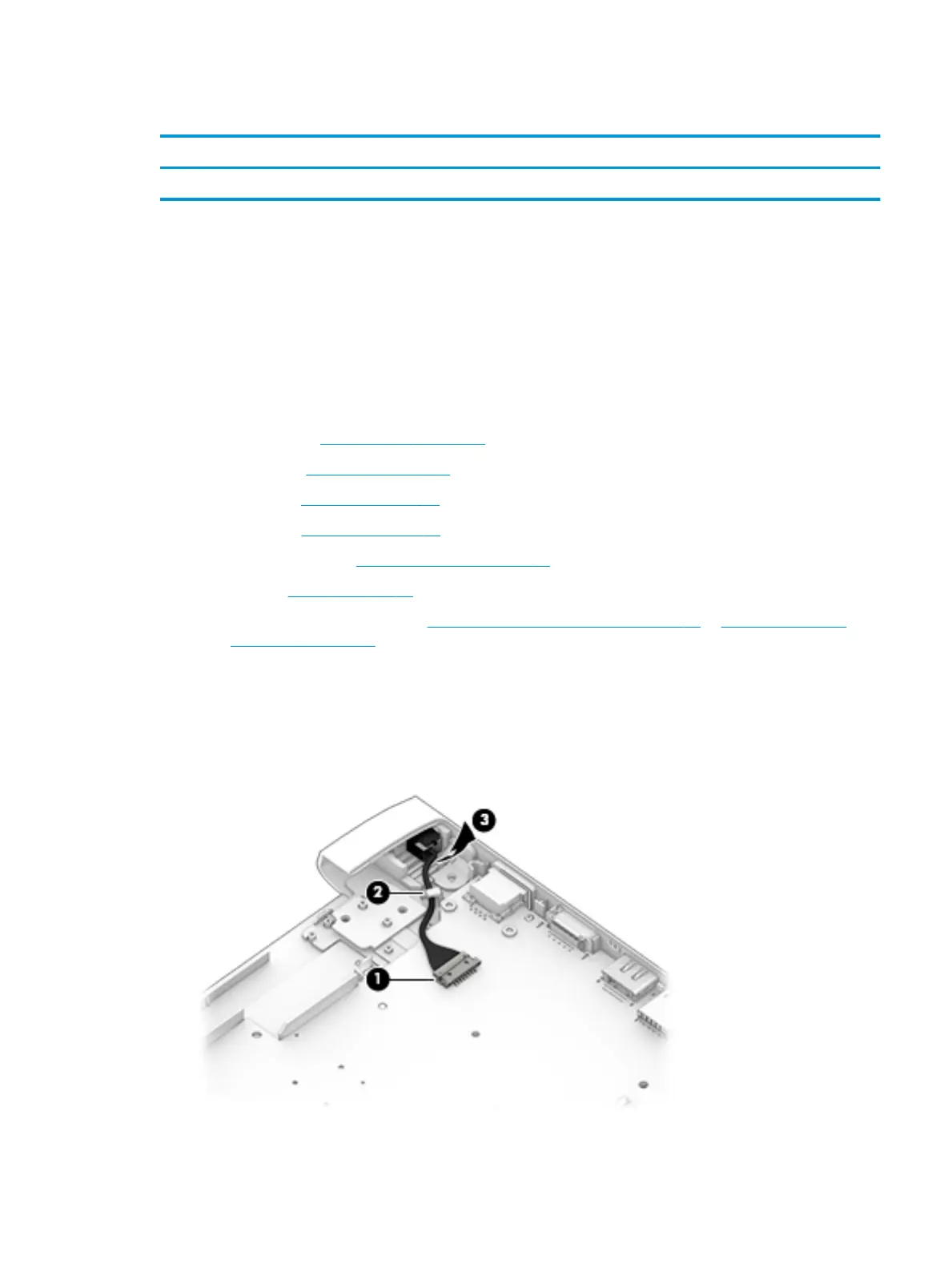

Remove the power cable:
1. Disconnect the cable from the system board (1).
2. Remove the cable from the clip (2).
3. Remove the power cable from the computer (3).
Reverse this procedure to install the power cable.
Component replacement procedures 71
