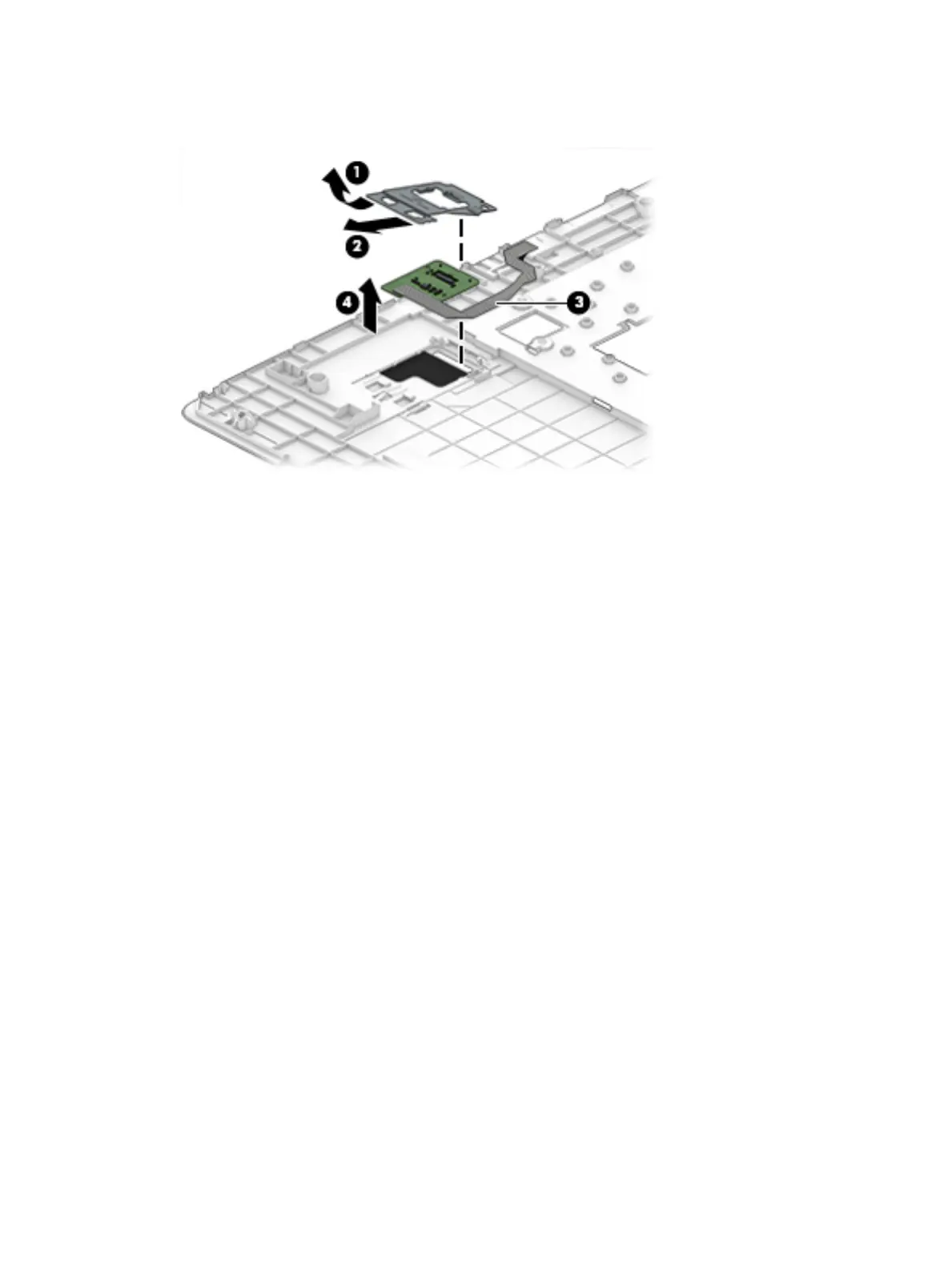

3. Lift the ngerprint reader cable and board to disengage the adhesive that secures them to the top cover

(3), and then remove the board and cable assembly from the top cover (4).

Reverse this procedure to install the ngerprint reader assembly.

48 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
