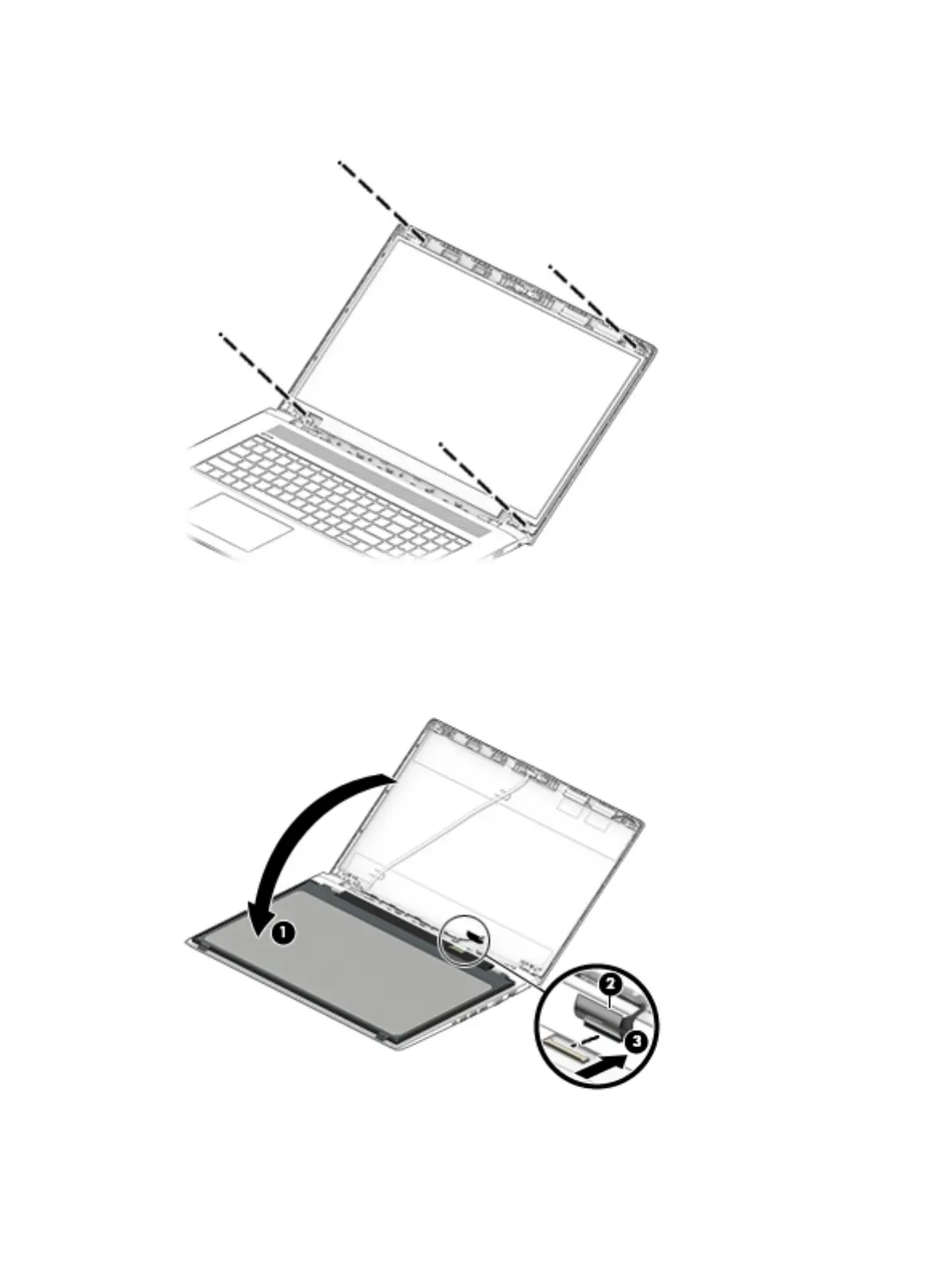

4. If it is necessary to remove or replace the display panel, remove the 4 Phillips M2.0×3.0 screws that
secure the display panel to the enclosure.
5. Rotate the display panel onto the keyboard (1) to gain access to the display cable connector on the back
of the panel.
6. Lift the tape from atop the connector on the display panel (2), and then disconnect the cable from the
panel (3).
7. Remove the panel.
66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
