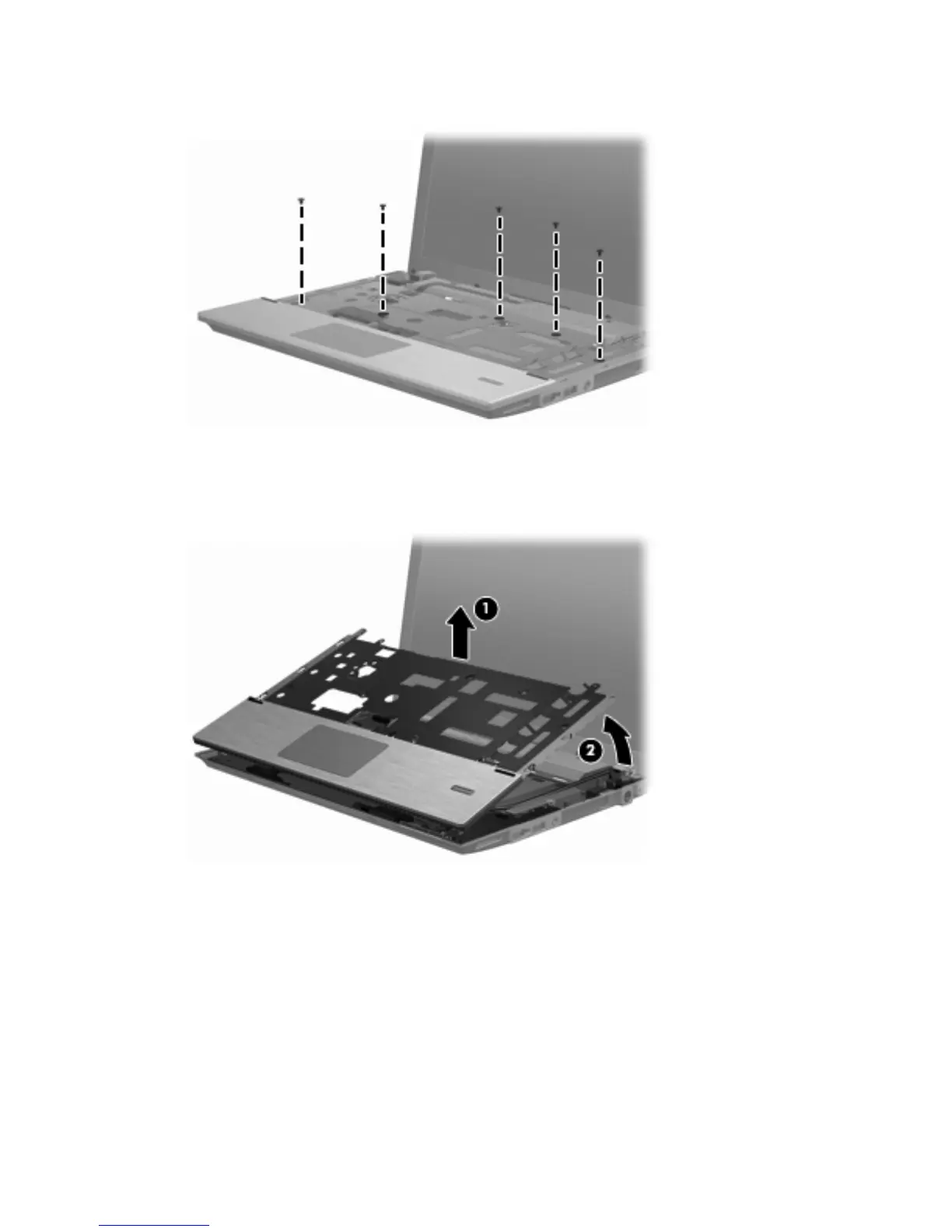

6. Remove the five PM2.5x5.0 screws that secure the keyboard to the base enclosure.
7. Lift the rear edge (1) of the top cover until it rests at an angle and you hear the locking tabs release.
8. Remove the top cover (2) by lifting first one side, then the other, until the top cover is released from
the enclosure.
Reverse this procedure to install the top cover.
58 Chapter 4 Removal and replacement procedures
