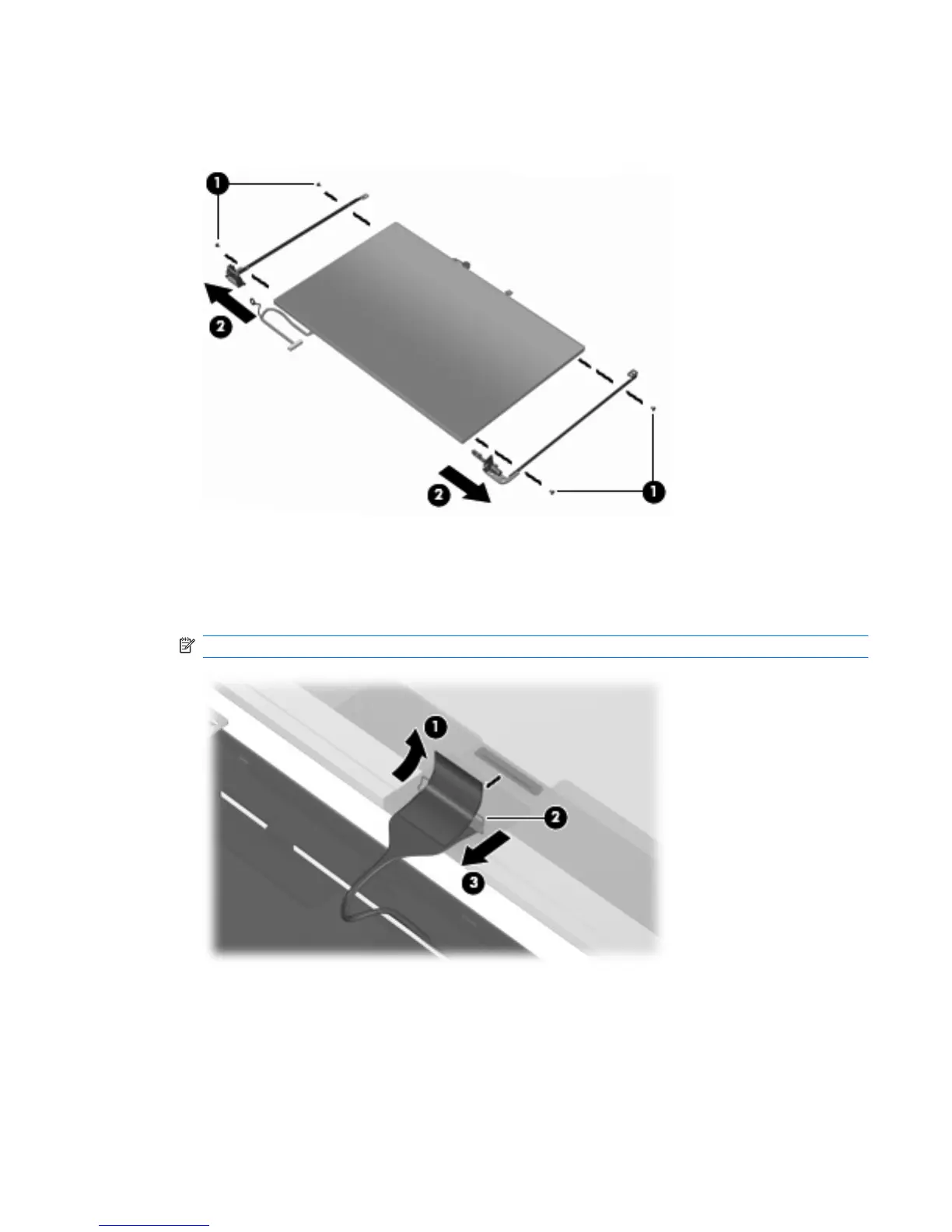

9. Remove the four PM2.0×3.0 screws (1) that secure the display hinges to the display panel, and
then remove the display hinges (2). The left and right display hinges are available in the Display
Hinge Kit, spare part number 610817-001.
10. If it is necessary to replace the display/webcam cable, turn the display panel upside down and peel
back the tape that secures the display cable to the display panel (1), and then release the connector
locking bar (2).
11. Release the cable from the display panel connector (3).
NOTE: The display cable includes the microphone and, on select models, the webcam connector.
Component replacement procedures 63
