Power connector cable
NOTE: The power connector cable is included in the Cable Kit on page 27, part number 610806-001.
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 40).
5. Remove the following components:
a. Switch cover (see
Switch cover on page 51)
b. Keyboard (see
Keyboard on page 53)
c. Top cover (see
Top cover on page 56)
d. System board (see
System board on page 71)
e. Security cable slot bracket (see
Security cable slot bracket on page 79)
Remove the power connector cable.

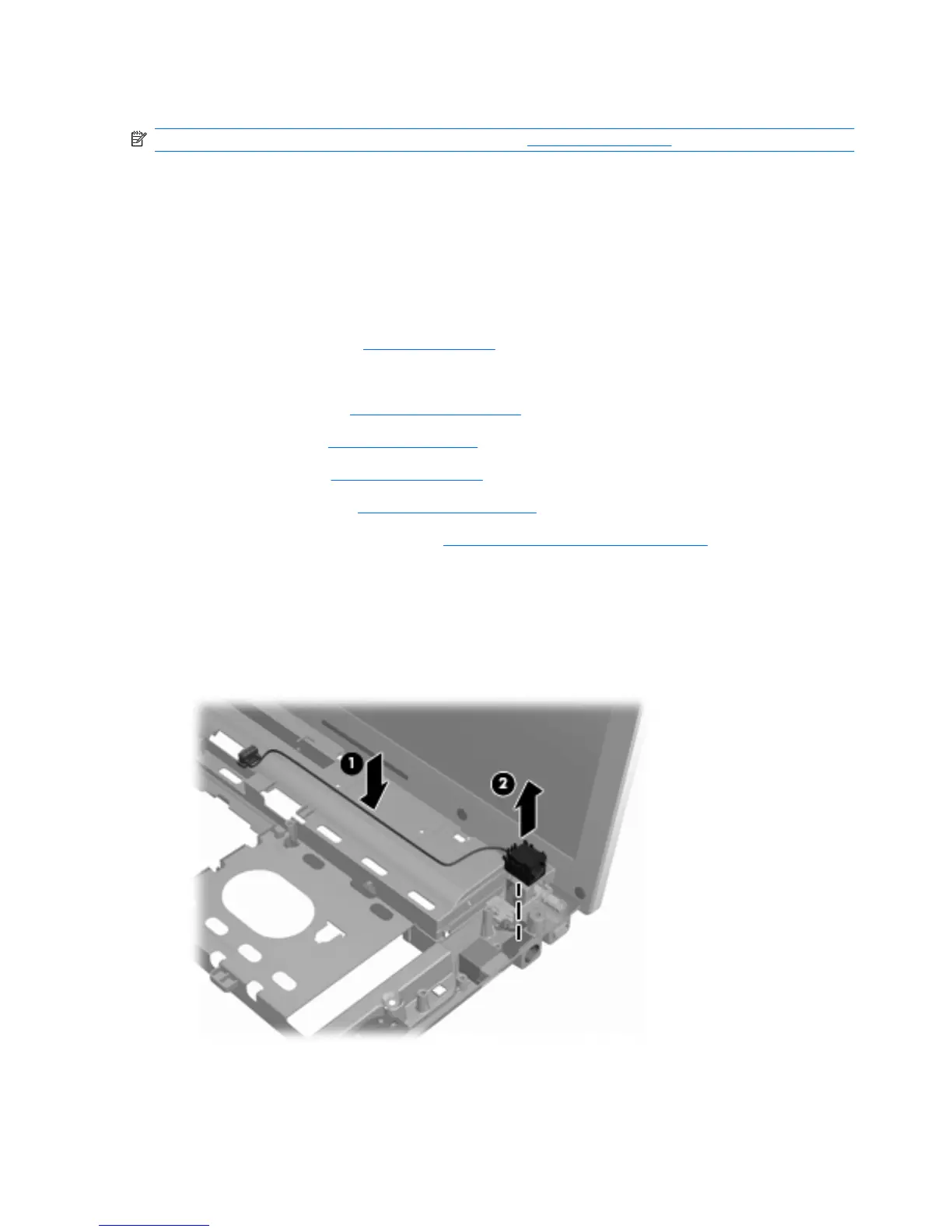

1. Position the computer right-side up with the front toward you.
2. Remove the power connector cable (1) from the routing in the base enclosure.
3. Remove the power connector cable from the base enclosure (2).
Reverse this procedure to install the power connector cable.
