Security cable slot bracket
Before removing the security cable slot bracket, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 40).
5. Remove the following components:
a. Switch cover (see
Switch cover on page 51)
b. Keyboard (see
Keyboard on page 53)
c. Top cover (see
Top cover on page 56)
d. System board (see
System board on page 71)

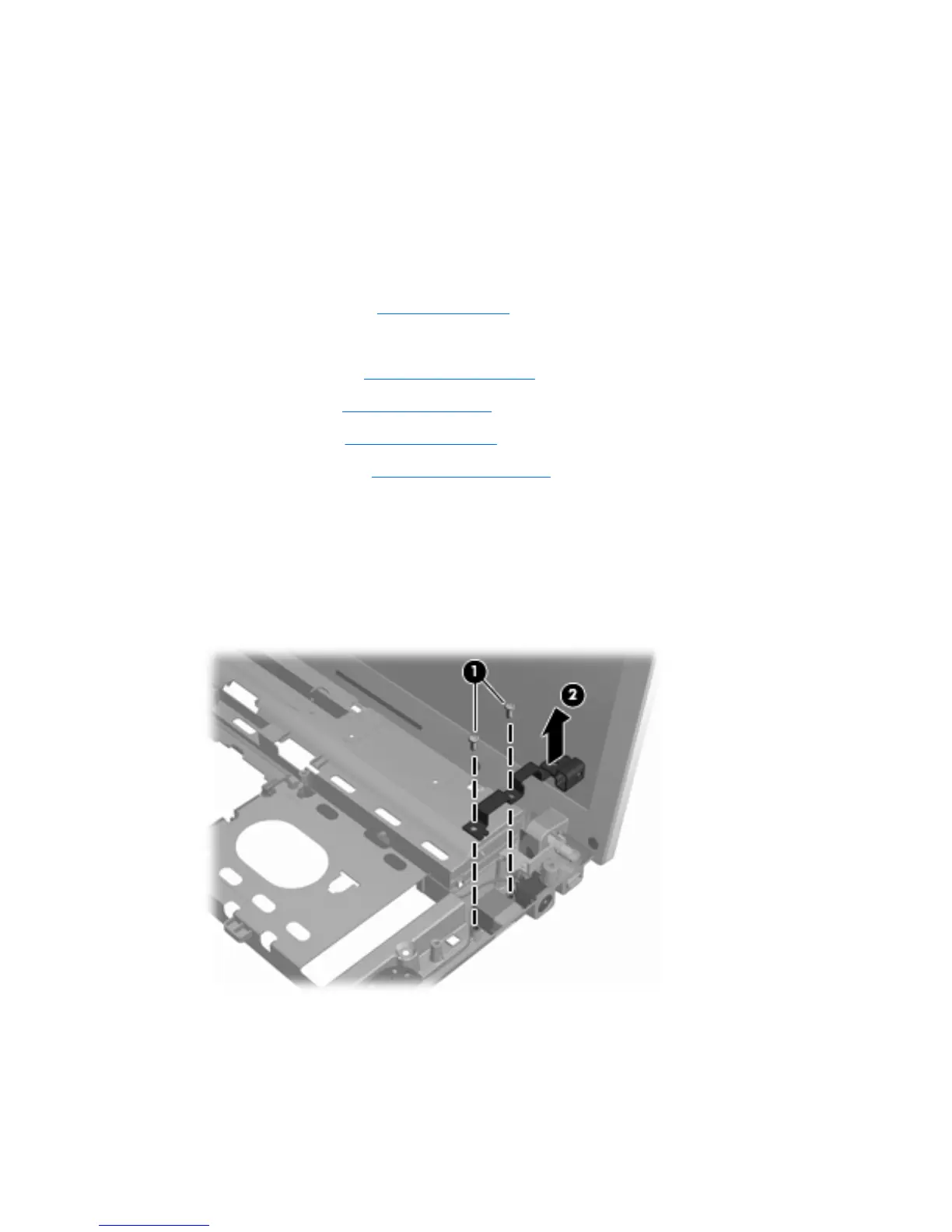

Remove the security cable slot bracket:
1. Position the computer right-side up with the right side toward you.
2. Remove the two PM2.0x5.0 screws (1) that secure the security cable slot bracket to the base
enclosure.
3. Lift the bracket (2) from the rear at an angle up and out.
4. Disconnect the bracket from the power connector.
Reverse this procedure to install the security cable slot bracket.
