f. WLAN module (see WLAN module on page 44).
g. Optical drive (see Optical drive on page 46).
h. Keyboard (see Keyboard on page 48).
i. Hinge covers (see Hinge cover on page 55).
j. Base enclosure (see Base enclosure on page 57).
k. System board (see System board on page 59).
l. Fan/heat sink assembly (see Fan and heat sink assembly on page 61).
m. Top cover (see Top cover and TouchPad on page 65).
Remove the smart card reader:
▲

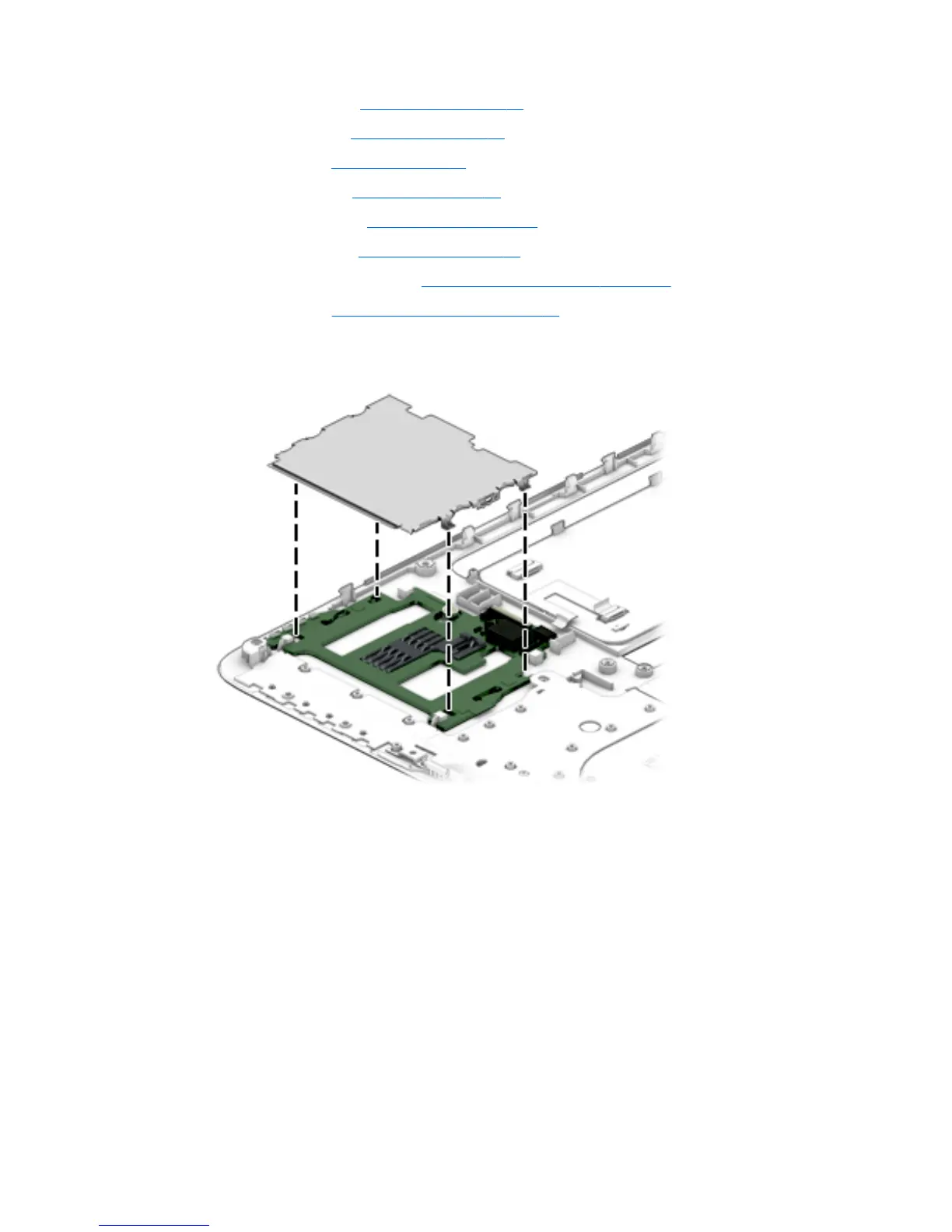

Remove the metal shield, and then lift the smart card reader to remove it.
Reverse this procedure to install the smart card reader.
Component replacement procedures 75
