If it is necessary to replace the webcam module:

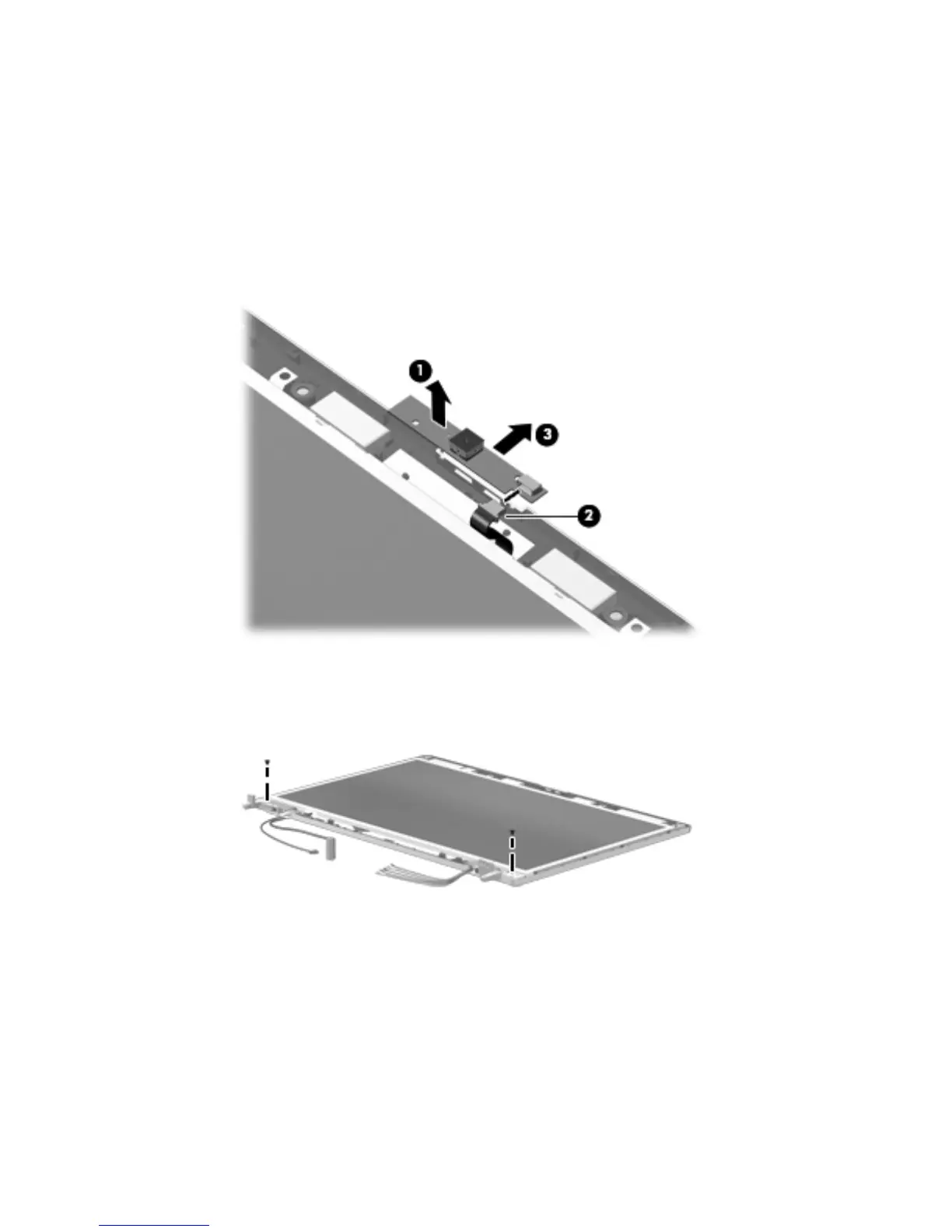

a. Release the webcam module (1) as far from the display enclosure as the webcam module
cable allows. (The webcam module is attached to the display enclosure with double-sided
tape.)
b. Disconnect the webcam module cable (2) from the webcam module.
c. Remove the webcam module (3). The webcam module is available using spare part number
611026-001.
15. If it is necessary to replace the display panel cable or display hinges:
a. Remove the two Phillips PM2.5×6.0 screws that secure the display panel to the display
enclosure.
b. Lift the top edge of the display panel (1), and then swing it up and forward until it rests
upside down in front of the display enclosure.
c. Release the support strip (2) and locking bar (3) that secure the display panel cable to the
display panel.
Component replacement procedures
121
