Top cover (see
Top cover on page 128)
k. ExpressCard assembly (see
ExpressCard assembly on page 133)
l.
Speaker assembly (see
Speaker assembly on page 137)
m. Card reader/USB board (see
Flash media/1394 board on page 141)
When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:
●
SIM (see
SIM on page 80)
●
Expansion and primary memory modules (see
Primary memory module on page 100 and
Expansion memory module on page 86)
●
WLAN module (see
WLAN module on page 88)
●
WWAN module (see
WWAN module on page 92)
●
RTC battery (see
RTC battery on page 102)
●
Processor (see
Processor on page 113)
●
Modem module (see
Modem module on page 135)
●
Bluetooth module cable (see
Bluetooth module cable on page 139)
Remove the system board:

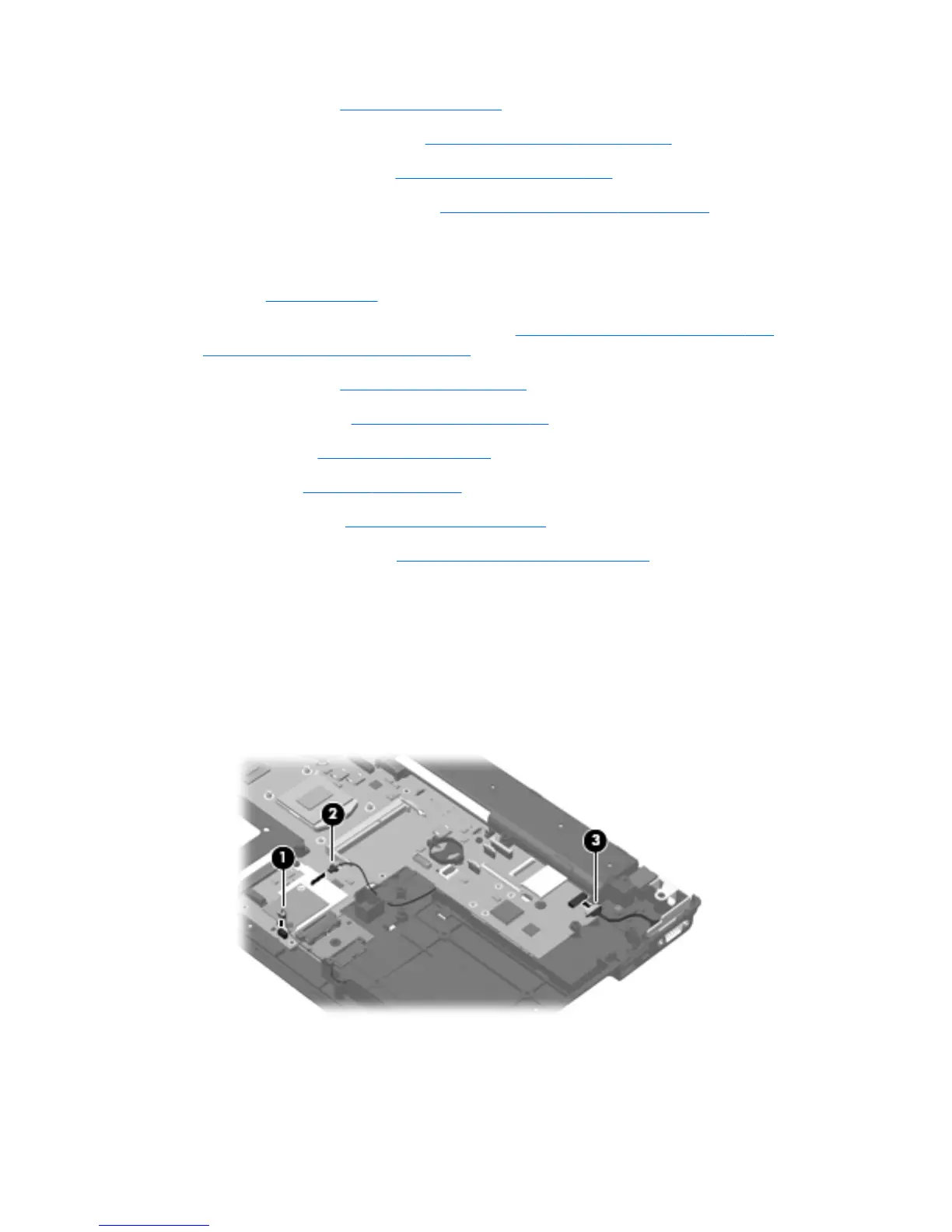

1. Disconnect the following cables:
●
Bluetooth module cable (1) from the system board
●
Modem module cable (2) from the modem module
●
External monitor cable (3) from the system board
