Processor (see
Processor on page 94)
●
USB 3.0 board (see
USB 3.0 board on page 120)
Remove the system board:
1. Position the computer right-side up, with the front toward you.

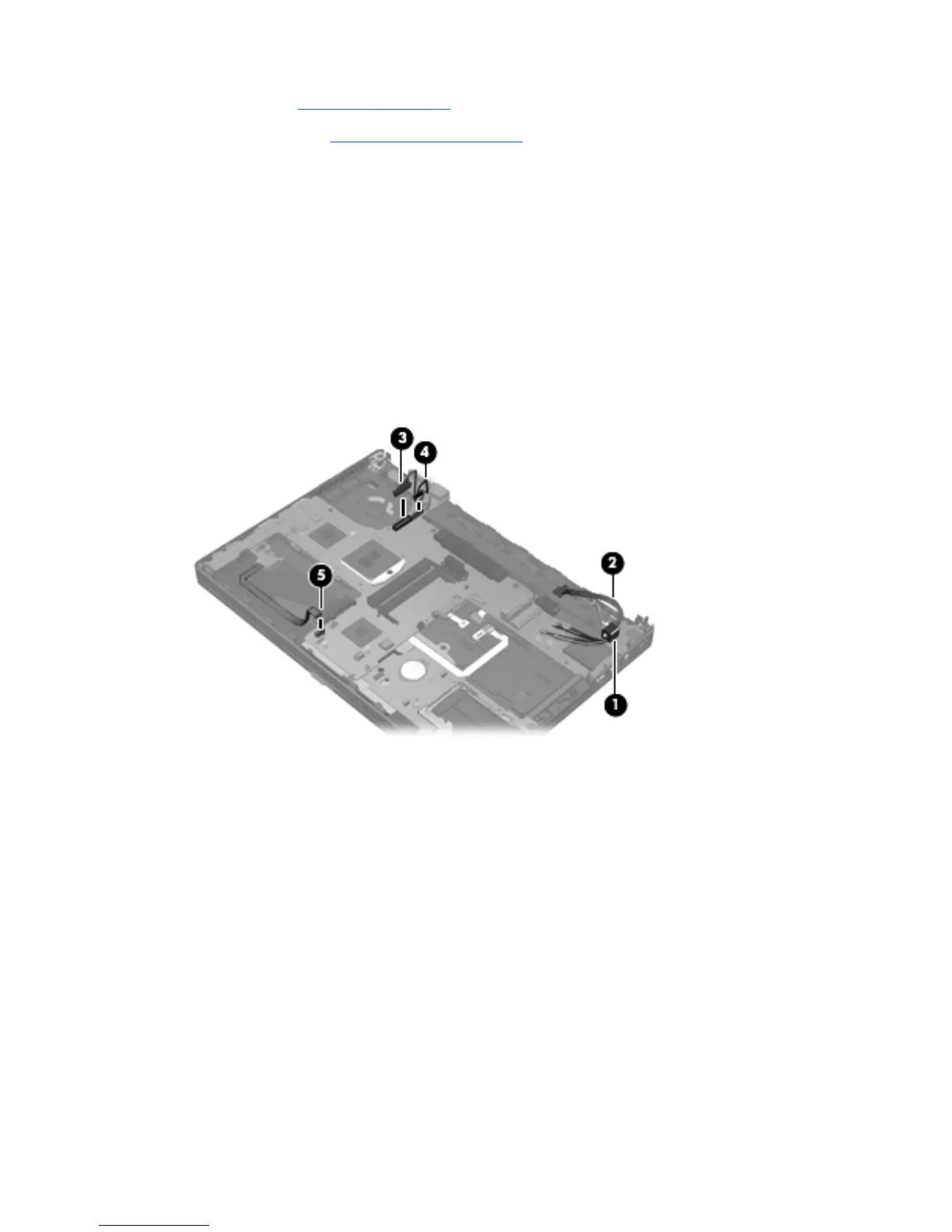

2. Disconnect the following cables from the system board (as necessary):
●
(1): Antenna cables from the rubber clamp
●
(2): Lid sensor board cable
●
(3): Display cable
●
(4): Webcam cable
●
(5): Fingerprint reader cable
118 Chapter 4 Removal and replacement procedures
