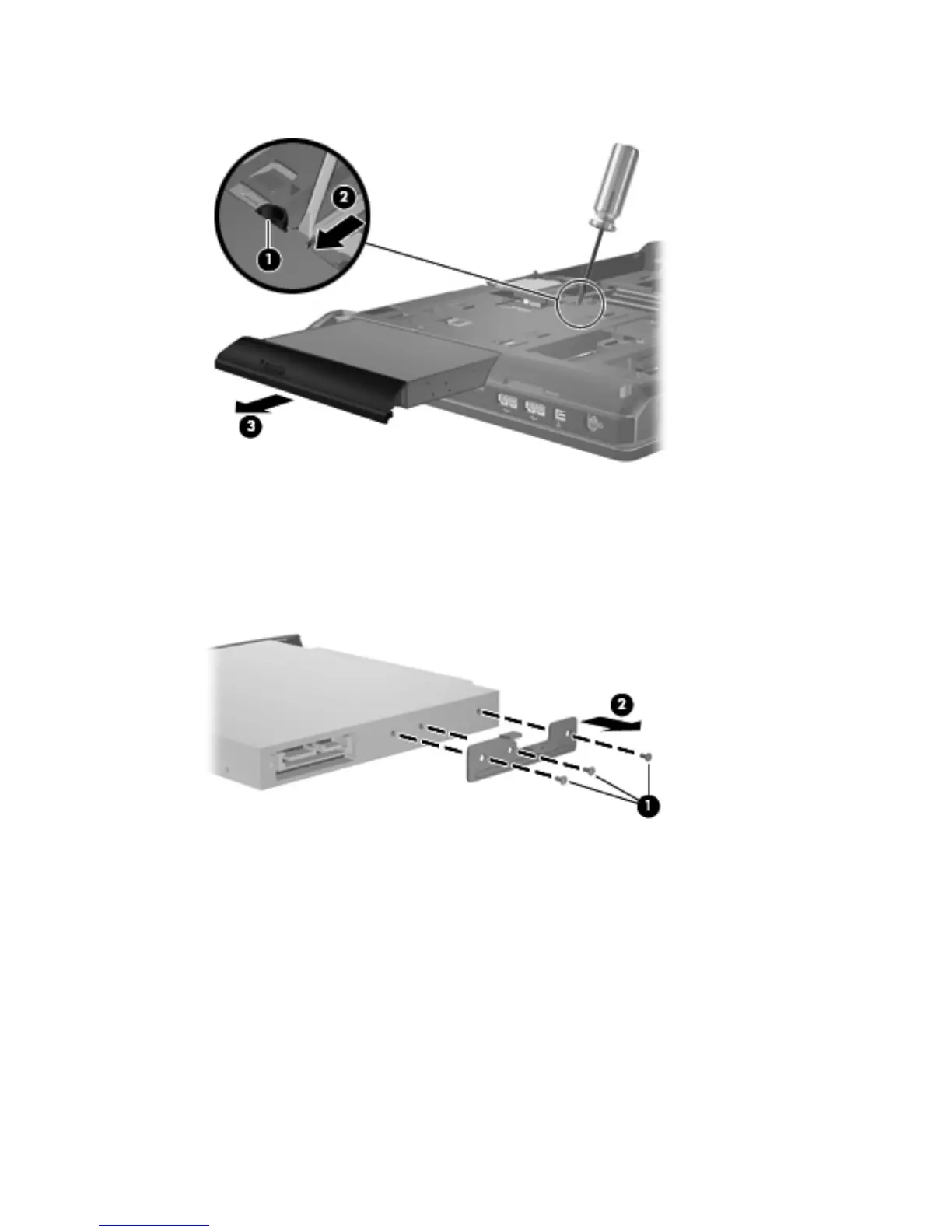

4. Remove the optical drive (3) from the computer.
5. If it is necessary to replace the optical drive bracket, position the optical drive with the rear
toward you.
6. Remove the three Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the
optical drive.
7. Remove the optical drive bracket (2).
Reverse this procedure to install an optical drive.
Component replacement procedures 73
