4.

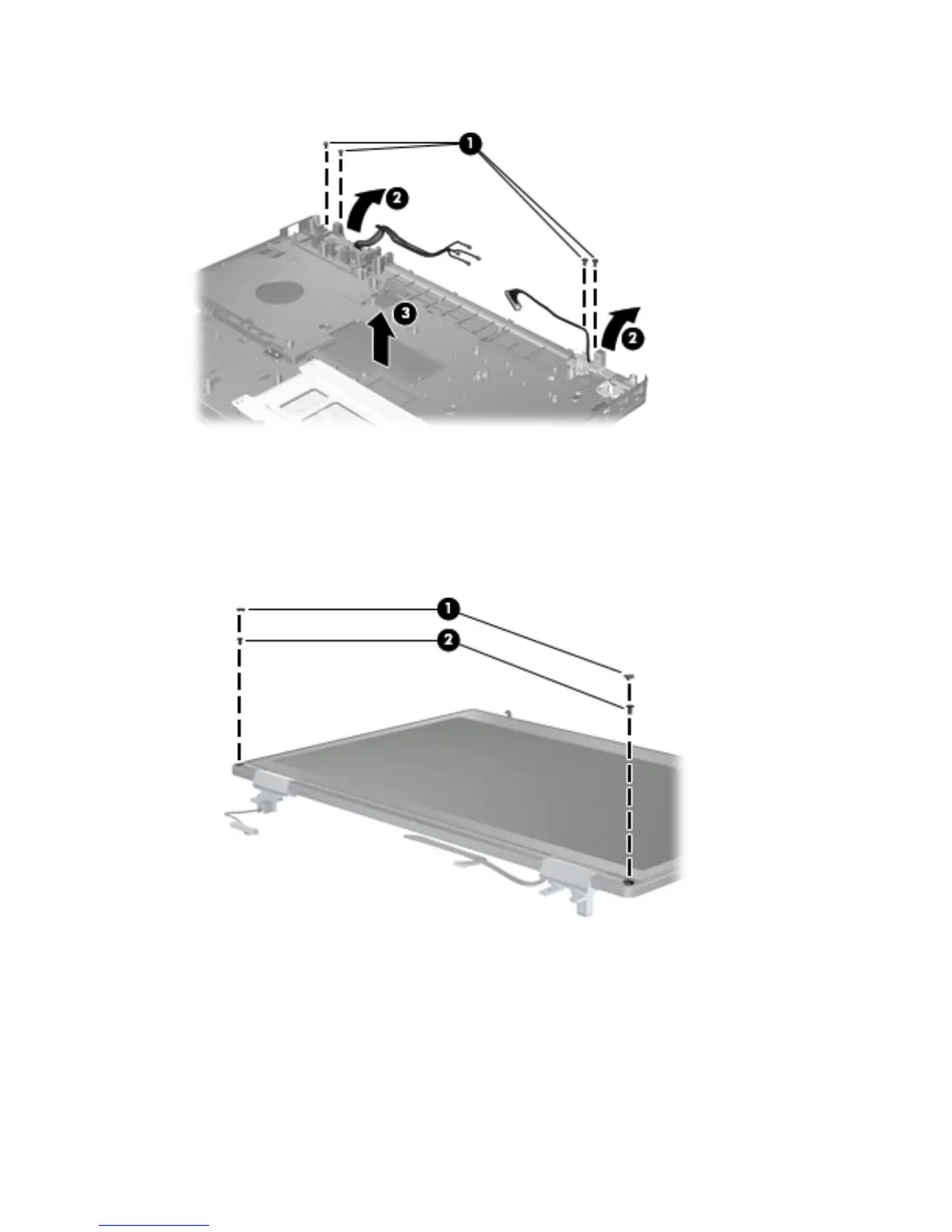

Remove the top cover (3) from the display assembly.
5. If it is necessary to replace the display bezel or any of the display assembly subcomponents:
a. Remove the rubber screw covers (1). The rubber screw covers are available in the Display
Rubber Kit, spare part number 642785-001.
b. Remove the two Phillips PM2.5×5.0 screws (2) that secure the display bezel to the
display assembly.
c. Flex the inside edges of the bottom edge (1), the left and right sides (2), and the
top edge (3) of the display bezel until the bezel disengages from the display enclosure.
