HP ProBook 6565b User Manual

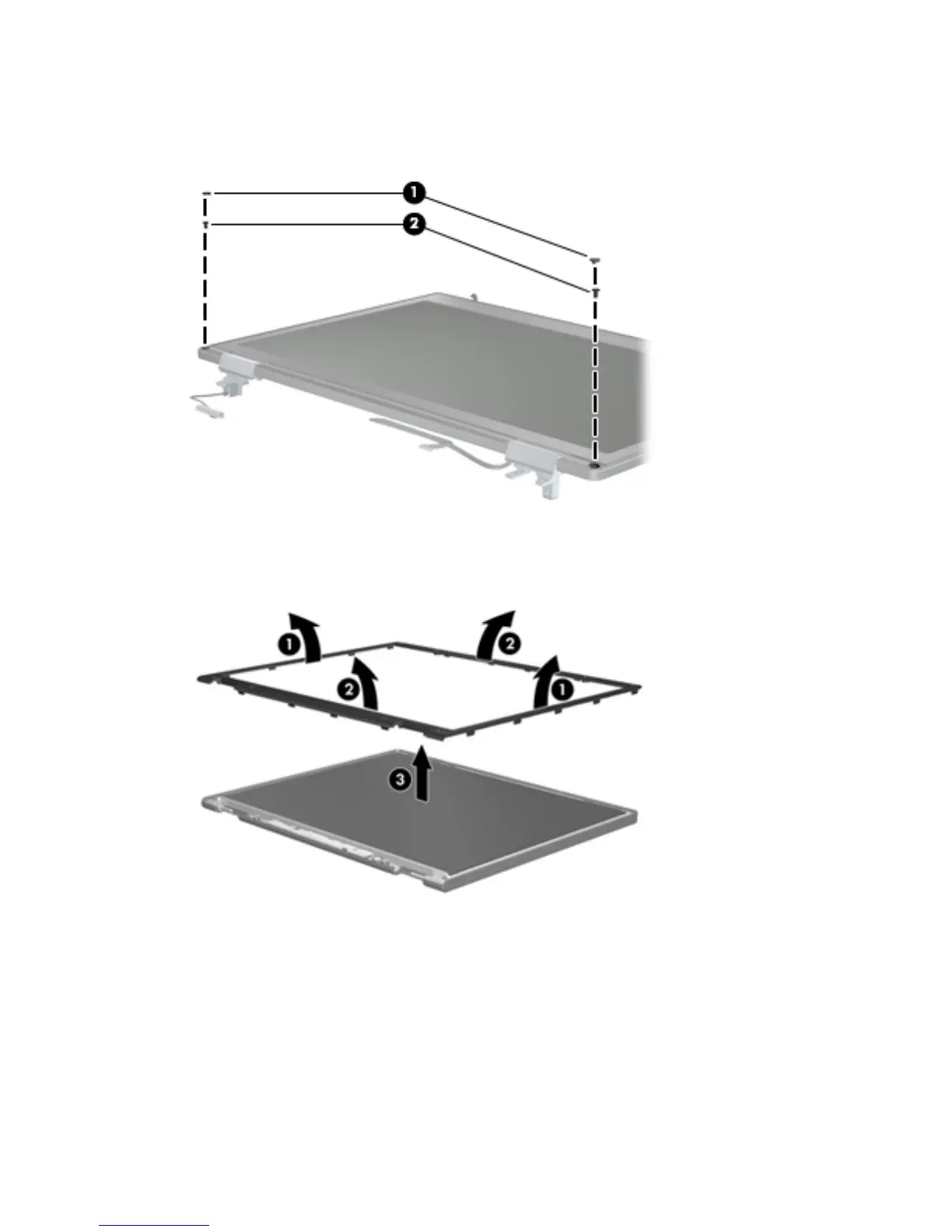

Perform the following steps to disassemble the display assembly:
1. Remove all screw covers (1) and screws (2) that secure the display bezel to the display
assembly.
2. Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of
the display bezel until the bezel disengages from the display assembly.
3. Remove the display bezel (3).
4. Remove all screws (1)(2) that secure the display panel assembly to the display enclosure.
122 Chapter 9 Recycling

HP ProBook 6565b Specifications

General

RAM	Up to 16 GB DDR3
Card Reader	SD/MMC
Processor	AMD A-Series
Display	15.6-inch HD (1366x768) or HD+ (1600x900)
Operating System	Windows 7 Professional
Battery	6-cell (55 Whr) Li-Ion
Optical Drive	DVD+/-RW SuperMulti DL
Wireless	802.11a/b/g/n, Bluetooth
Audio	Stereo speakers
Ports	USB 3.0, VGA, RJ-45, RJ-11, headphone/microphone combo
Webcam	720p HD Webcam
Dimensions	37.4 x 25.1 x 3.4 cm
