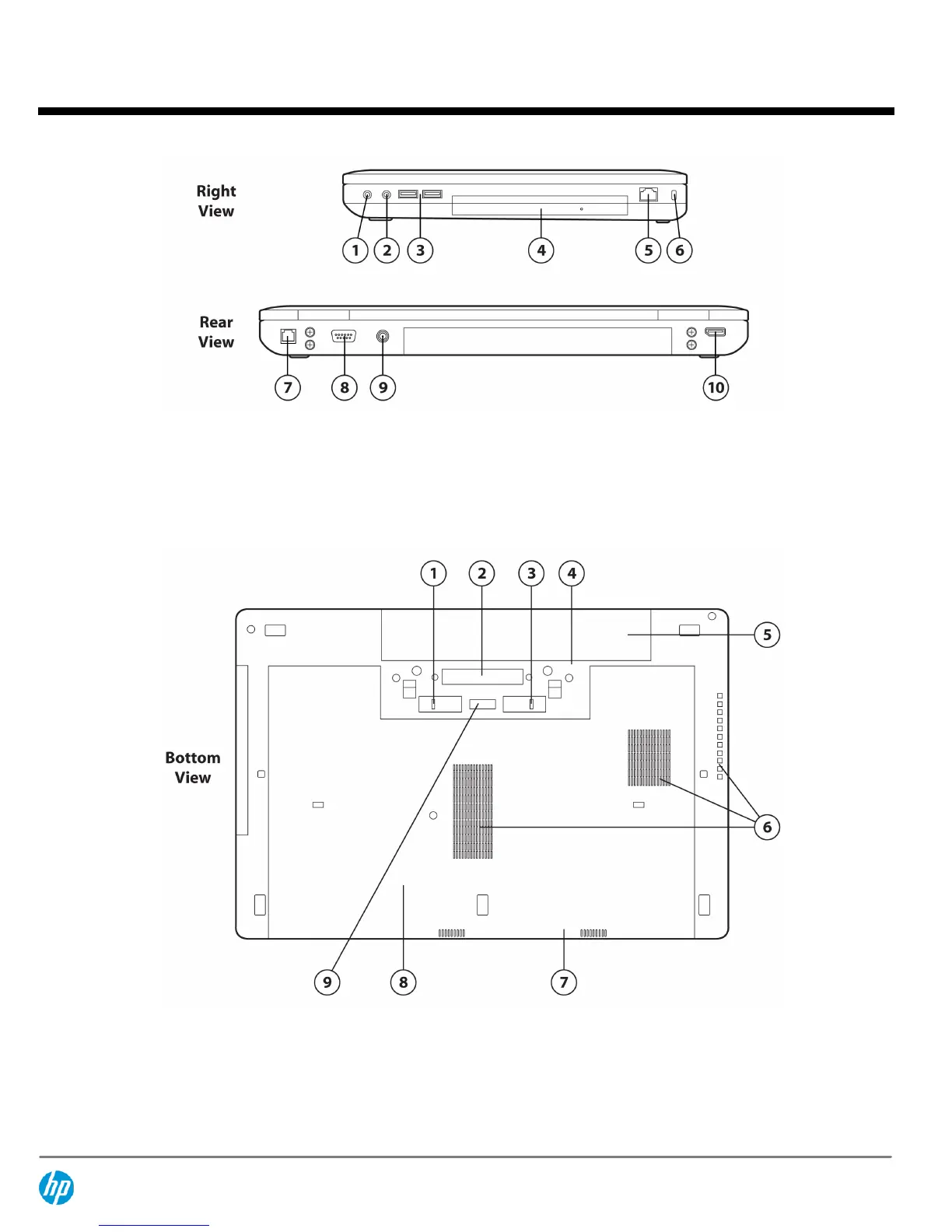

1.
Stereo headphone/line out
6.
Security lock slot
2.
Stereo microphone/line in
7.
RJ-11/modem port (Optional)
3.
(2) USB 3.0 ports
8.
Serial port
4.
Upgrade Bay (optical drive, second hard drive or weight saver)
9.
Power connector
5.
RJ-45/Ethernet port
10.
DisplayPort
1.
Battery release latch
6.
Vents
2.
Docking connector
7.
Bluetooth module compartment (located under bottom cover)
3.
Bottom cover release latch
8.
Hard drive, memory, and wireless compartments under
bottom cover
4.
SIM slot for WWAN (in battery bay; select models)
9.
Secondary battery connector
5.
Battery bay
QuickSpecs
HP ProBook 6470b Notebook PC
HP ProBook 6570b Notebook PC
Overview
DA - 14308 Worldwide — Version 8 — January 31, 2013
Page 4
