HP ProLiant DL380 Generation 5

Removal and replacement procedures 61
Hard drive backplane
To remove the component:
1. Power down the server (on page 30).
2. Extend or remove the server from the rack ("Remove the server from the rack" on page 31).
3. Remove the access panel ("Access panel" on page 32).
4. Remove all hot-plug hard drives ("Hot-plug SAS hard drive" on page 33).

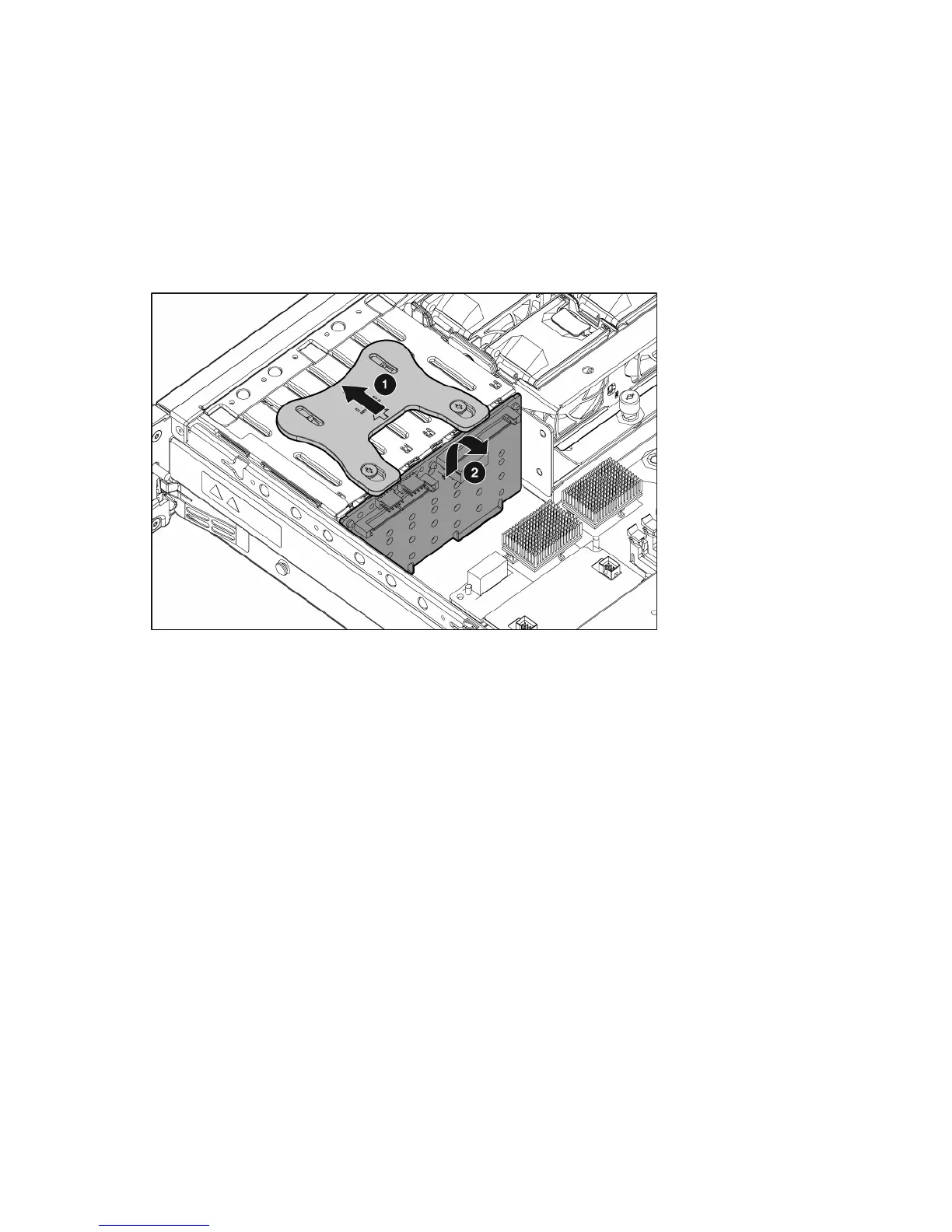

5. Remove the hard drive backplane.
To replace the component, reverse the removal procedure.
Hard drive backplane retainer
To remove the component:
1. Power down the server (on page 30).
2. Extend or remove the server from the rack ("Remove the server from the rack" on page 31).
3. Remove the access panel ("Access panel" on page 32).
4. Remove all hot-plug hard drives ("Hot-plug SAS hard drive" on page 33).
5. Remove the hard drive backplane ("Hard drive backplane" on page 61).
