Removal and replacement procedures 63
7.

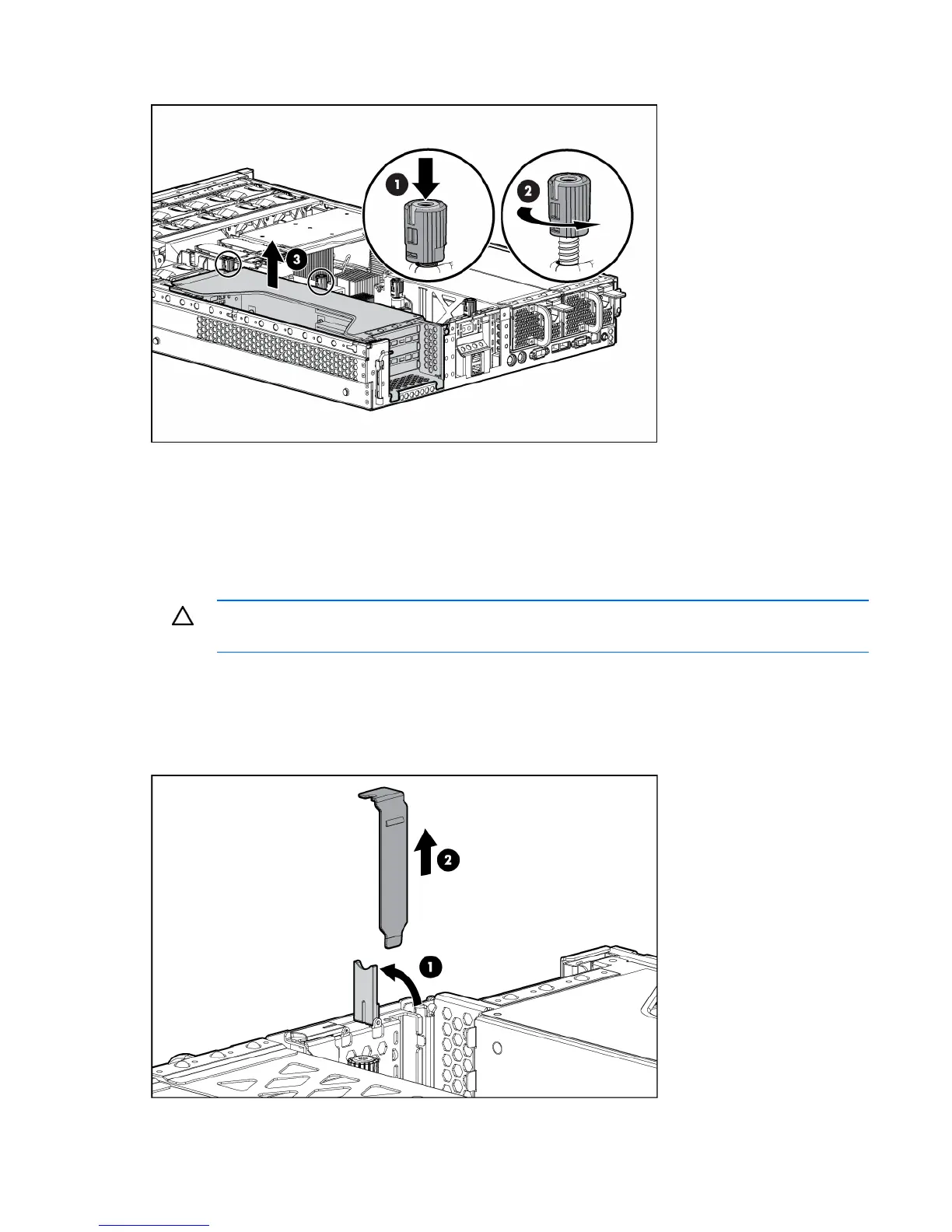

Remove the PCI riser cage.
To replace the component, reverse the removal procedure.
Expansion slot covers
Expansion slot covers (1 and 2)
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless
all PCI slots have either an expansion slot cover or an expansion board installed.
1. Power down the server (on page 30).
2. Extend or remove the server from the rack ("Remove the server from the rack" on page 31).
3. Remove the access panel ("Access panel" on page 32).
4. Remove the expansion slot cover.
