Removal and replacement procedures 65
4.

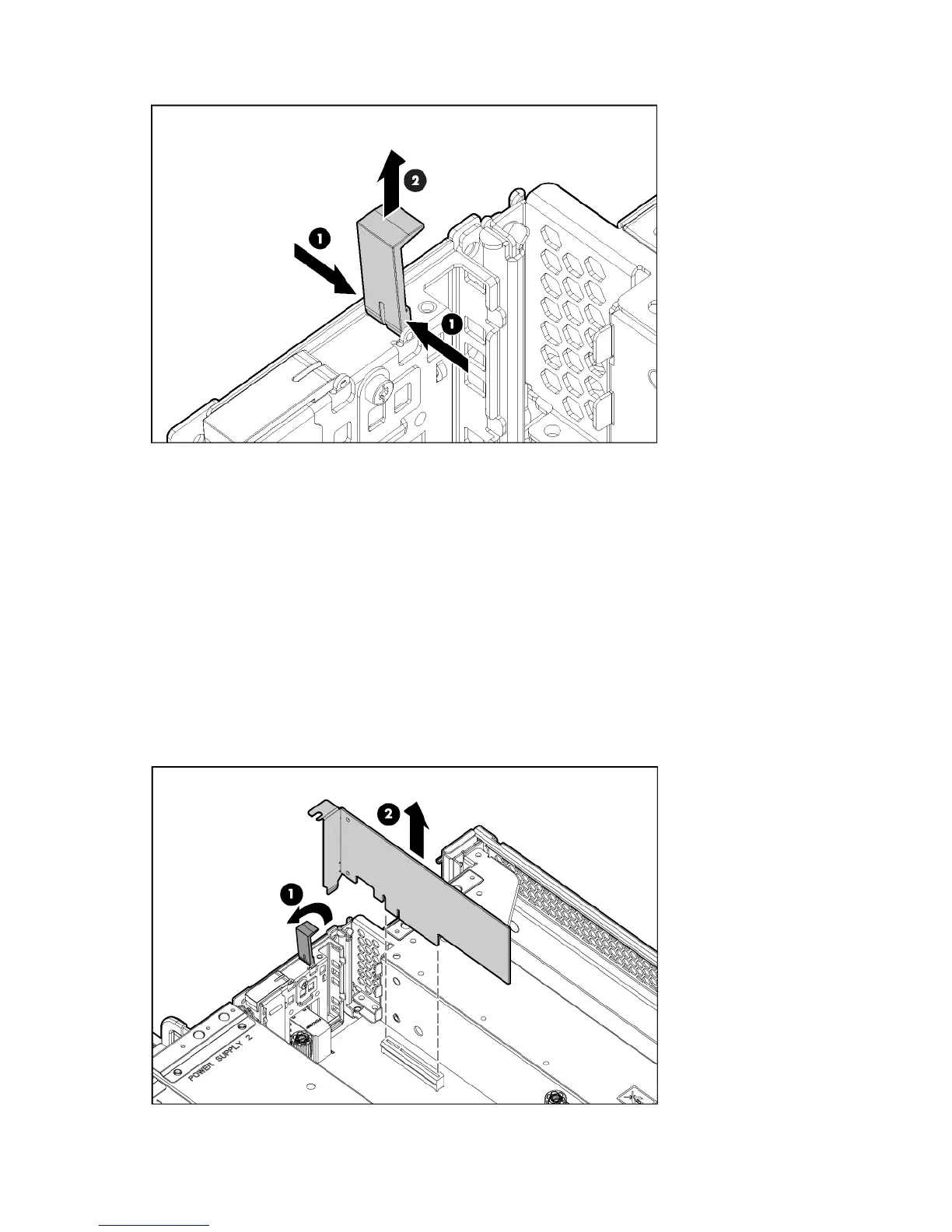

Remove the expansion slot cover retainer.
To replace the component, reverse the removal procedure.
Expansion boards
Expansion board (slots 1 and 2)
To remove the component:
1. Power down the server (on page 30).
2. Extend or remove the server from the rack ("Remove the server from the rack" on page 31).
3. Remove the access panel ("Access panel" on page 32).
4. Disconnect any internal or external cables connected to any existing expansion boards.
5. Remove the expansion board.
