HP ProLiant ML110 - G2 Server Maintenance And Service Guide

Removal and Replacement Procedures

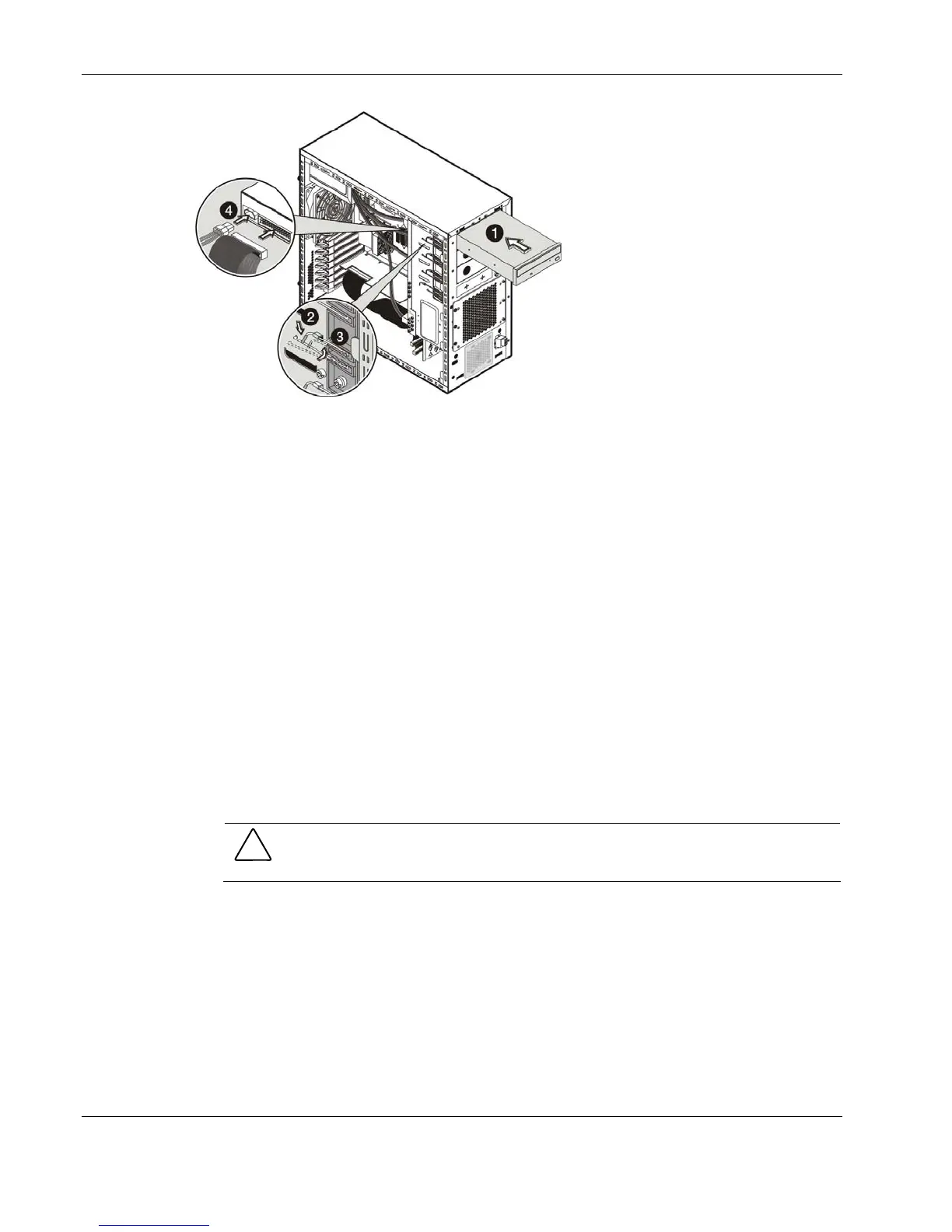

Figure 2-16: Installing the IDE CD-ROM drive
9. Observe the post-installation procedures.
Optional Media Device
The two full-height drive bays may be used for a DVD-ROM drive, tape drive, non-hot-plug
hard drive, any SCSI device or a 2-bay SCSI drive cage, including a DLT tape drive. A DLT
tape drive or the 2-bay SCSI drive cage requires both empty full-height drive bays.
To install an optional media drive:
1. Perform steps 1 through 3 of the pre-installation instructions.
2. Remove the access panel.
3. Remove the front bezel.
4. Select the drive bay where you plan to install the optional drive.
5. Prepare the selected common bay for drive installation:
a. Pull out the bay cover. Store it for later use.
CAUTION: Do not discard the bay cover. If the optional media drive is removed in the
future, the cover must be reinstalled to maintain proper cooling.
b. Press the retaining lever of the selected bay.
c. Move the lever downward to release the bar from its retaining hook.
2-16 HP ProLiant ML110 Generation 2 Server Maintenance and Service Guide

HP ProLiant ML110 - G2 Server Specifications

General

Server Type	Tower
Chipset	Intel E7210
Memory Type	DDR SDRAM
Maximum Memory	4 GB
Optical Drive	Optional
Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Pentium 4
Storage Controller	Integrated SATA
Drive Bays	2 x 3.5" internal
Network Controller	Integrated Broadcom Gigabit Ethernet
Power Supply	300W
Operating System Support	Microsoft Windows Server 2003, Red Hat Linux
