Removal and Replacement Procedures
Non-hot-plug HDD Cage
To install a SCSI drive in a non-hot-plug HDD cage:
1. Perform steps 1 through 3 of the pre-installation instructions.
2. Remove the access panel.
3. Remove the front bezel.
4. Remove the non-hot-plug HDD cage:
Step (a) below assumes that a drive is currently installed in the cage. If the cage is empty,
go directly to step (b).
a. Disconnect the power and data cables from the rear of the drive.
Perform this step for all drives currently installed in the cage.
b. Remove the six Torx screws that secure the cage to the chassis.
Keep the screws for reinstalling the cage later.
c. Gently slide out the cage from the chassis.

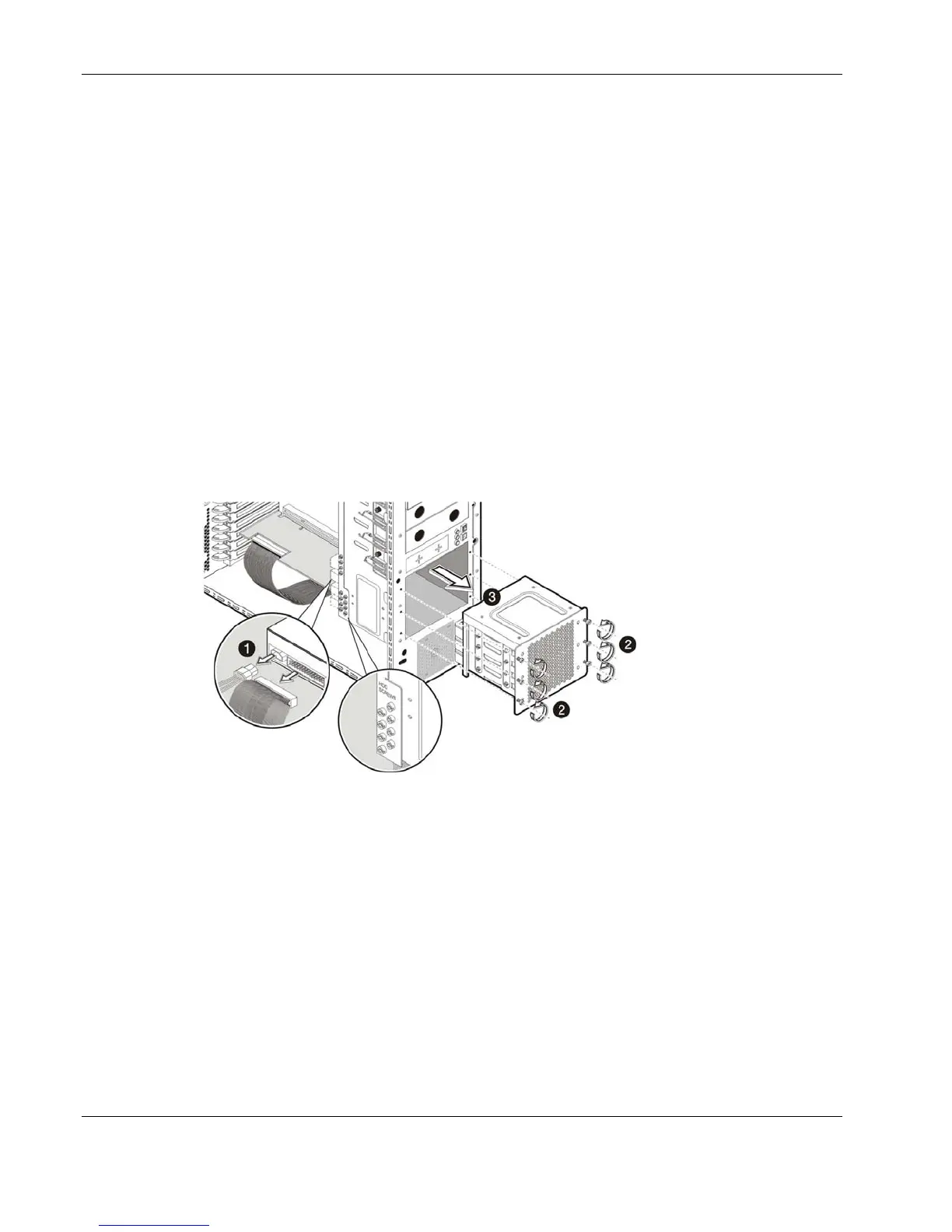

Figure 2-22: Removing the non-hot-plug HDD cage for SCSI drive installation
5. Select a drive bay in the cage where you want to install the new SCSI hard disk.
If you going to install the new hard disk in a previously occupied drive bay, pull out the
installed drive by removing the four screws securing the old drive to the cage, before
sliding the drive out of the cage. You will be reusing these screws when you install the
new hard disk.
If you are going to install a new hard disk in an empty drive bay, remove four screws
from the side of the chassis labeled ‘HDD SCREWS’. See Figure 2-22 for the location of
these spare HDD screws.
2-20 HP ProLiant ML110 Generation 2 Server Maintenance and Service Guide
