Cable management
Always follow good cable management practices when working inside the computer.
• Keep cables away from major heat sources like the heat sink fan.
• Do not jam cables on top of expansion cards or memory modules. Printed circuit cards are not
designed to withstand excessive pressure.
• Keep cables clear of sliding or moveable parts to prevent cutting or crimping.
• When folding a flat ribbon cable, never fold to a sharp crease. Sharp creases may damage the
wires.
• Some flat ribbon cables come prefolded. Never change the folds on these cables.
• Do not sharply bend any cable. A sharp bend can break the internal wires.
• Never bend a SATA data cable tighter than a 30 mm (1.18 in.) radius.
• Never crease a SATA data cable.
• Do not rely on components like the drive cage, power supply, or system cover to push cables
down into the chassis.

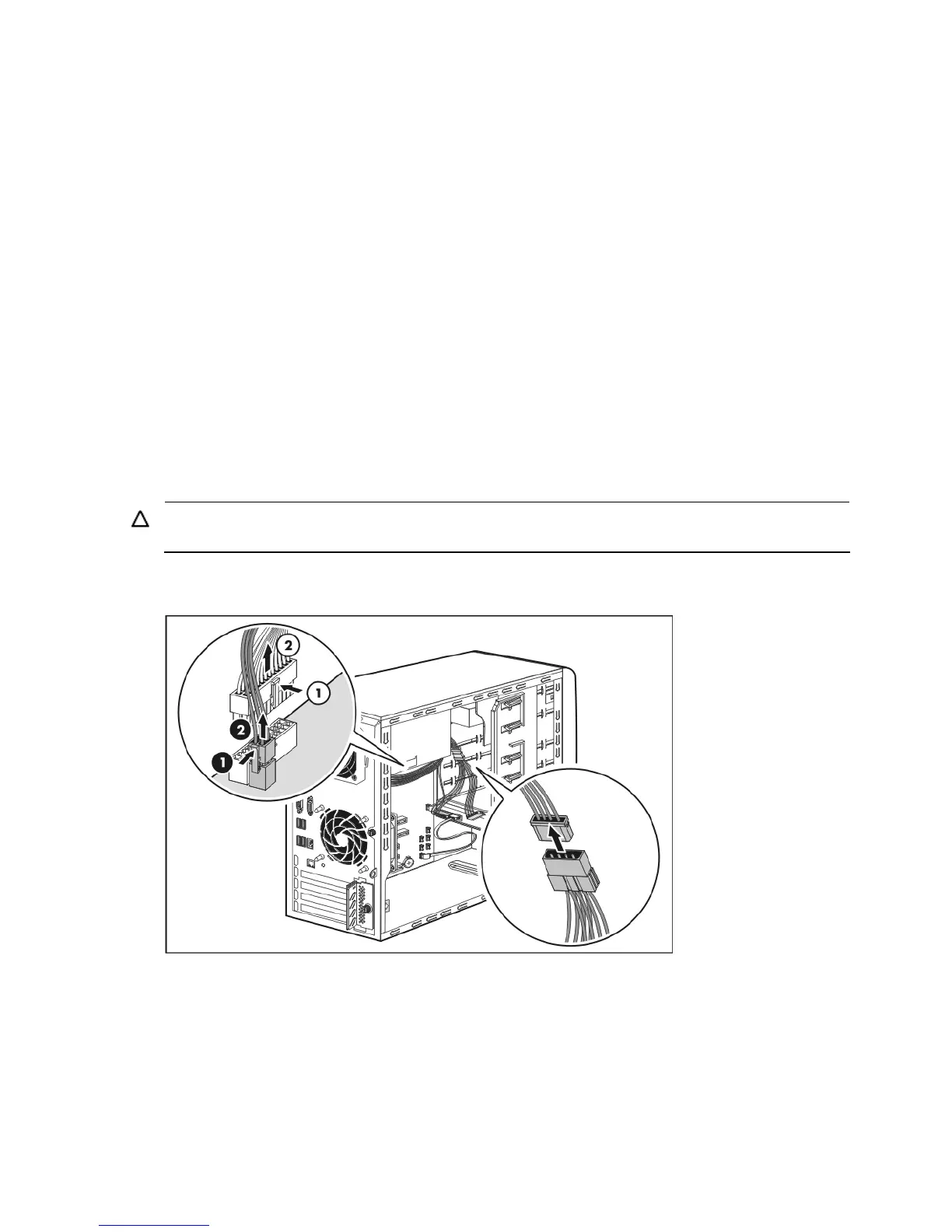

To disconnect a power supply cable from the system board:
CAUTION: Always pull the connector. NEVER pull on the cable. Pulling on the cable can damage
the cable and result in a failed power supply.
1. Squeeze on the top of the retaining latch attached to the cable end of the connector.
2. Grasp the cable end of the connector and pull it straight up.
