Connectors, switches, and LEDs 77

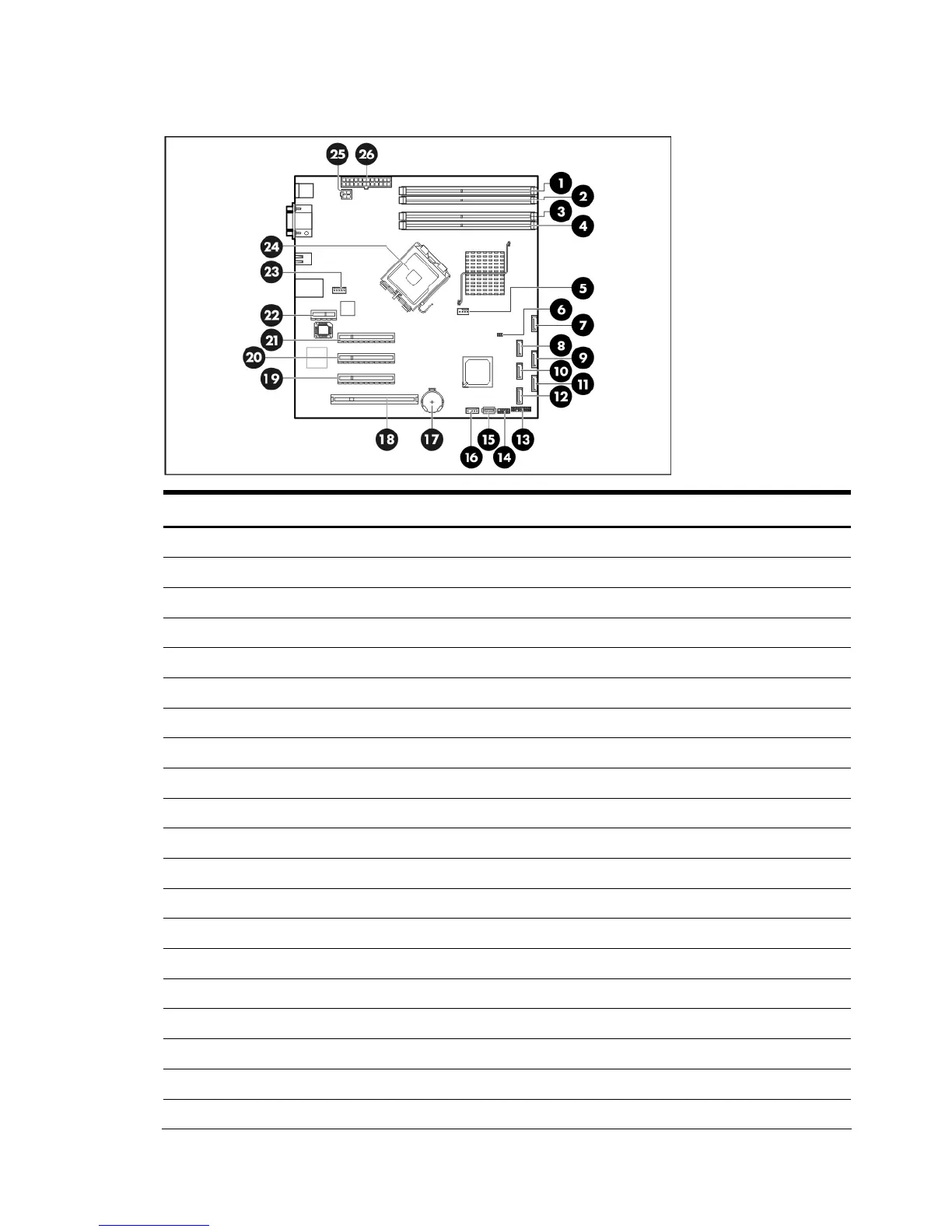

System board
Item Component code Component
1 DIMM 4B Channel B 2
nd
DDR II DIMM slot
2 DIMM 3B Channel B 1
st
DDR II DIMM slot
3 DIMM 2A Channel A 2
nd
DDR II DIMM slot
4 DIMM 1A Channel A 1
st
DDR II DIMM slot
5 JP5 CPU fan connector
6 CN11 HDD LED cable connector (for SAS HDD)
7 SATA6 2
nd
removable media drive SATA cable connector
8 SATA5 1
st
removable media drive SATA cable connector
9 SATA4 4
th
HDD SATA cable connector
10 SATA3 3
rd
HDD SATA cable connector
11 SATA2 2
nd
HDD SATA cable connector
12 SATA1 1
st
HDD SATA cable connector
13 FPCN1 Front panel board connector
14 FPUSBCONN1 Front panel USB port connector
15 USBCONN3 Internal USB connector for STD USB
16 USBCONN2 Internal USB connector for tape device
17 BAT1 System battery
18 PCI1 32-bit/33 MHz 3.3 V PCI slot
19 PCI2 PCI Express x1 link with x8 slot
20 PCI3 PCI Express x1 link with x8 slot
