Status LED indicators
The status LED indicators aid in problem diagnosis by indicating the status of system components and
operations of the server.

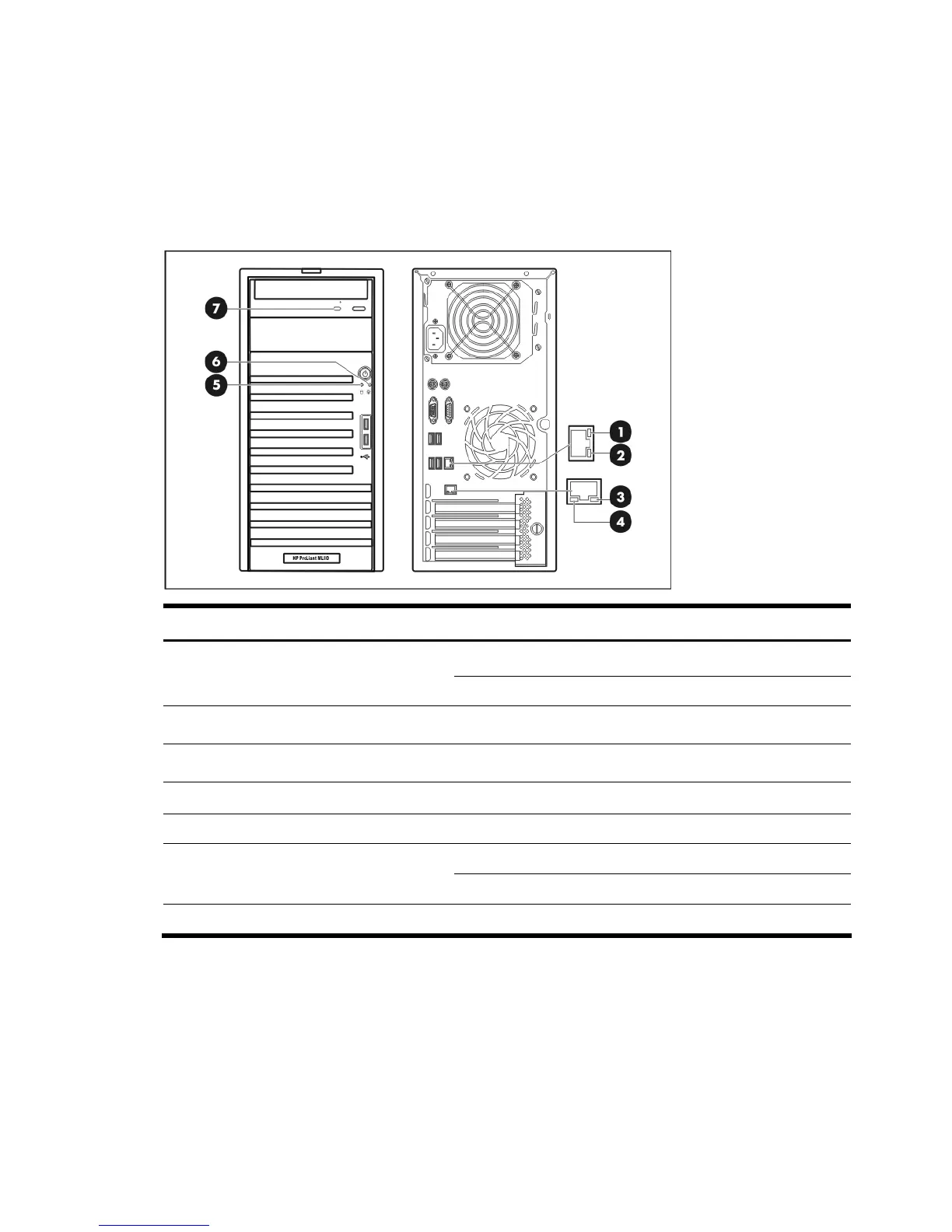

External LED indicators
Item Indicator Status Description
Orange 10/100 Mbps connection 1 Embedded NIC link
Green Gigabit connection
2 Embedded NIC activity Blinking yellow Ongoing network activity
3 Management NIC activity Blinking green Ongoing network activity
4 Management NIC link Green Existing network link
5 HDD activity Green Ongoing HDD activity
Green Power on mode 6 System power
Amber Standby mode
7 ODD activity Green Ongoing ODD activity
