8 Reference and Troubleshooting Guide
Item Description
4 System power button
5 UID button
6 Diskette drive
7 CD-ROM drive

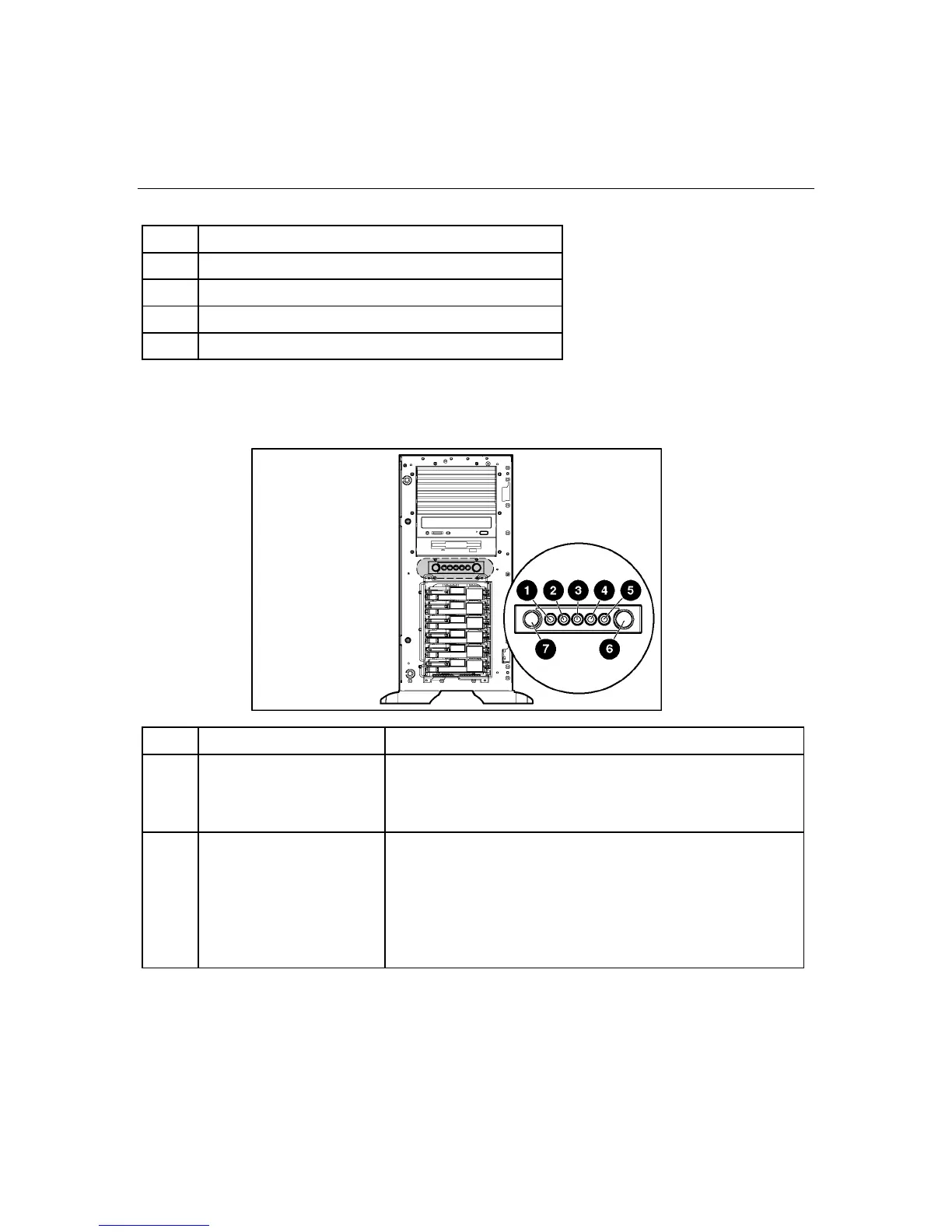

Front Panel LEDs and Buttons
Item Description Status
1 UID LED Blue = Activated
Flashing = System remotely managed
Off = Deactiviated
2 Internal health LED Green = Normal
Amber = System degraded. Refer to system board LEDs to
identify component in degraded state.
Red = System critical. Refer to system board LEDs to identify
component in critical state.
Off = Normal (when in standby mode)
