Removal and replacement procedures 46
3.

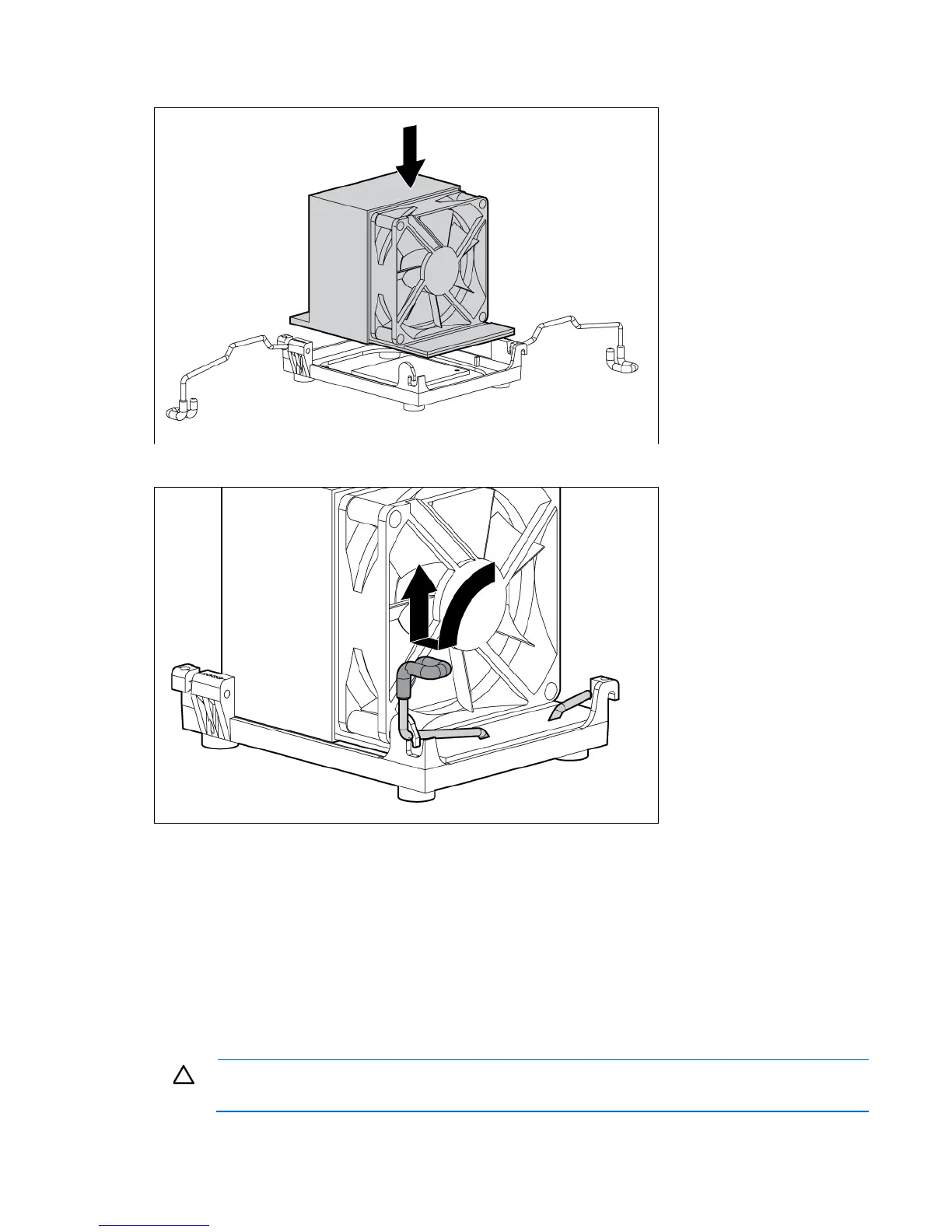

Install the heatsink.
4. Close the heatsink locking levers.
5. Connect the heatsink fan cable to the system board.
6. Install the access panel.
7. Do one of the following:
o Close or install the tower bezel, as needed.
o Slide the server back into the rack.
8. Power up the server.
Processor
CAUTION: To prevent possible server malfunction, do not mix processors of different speeds or
cache sizes. Refer to the label on the processor heatsink for a description of the processor.
