Cabling 64

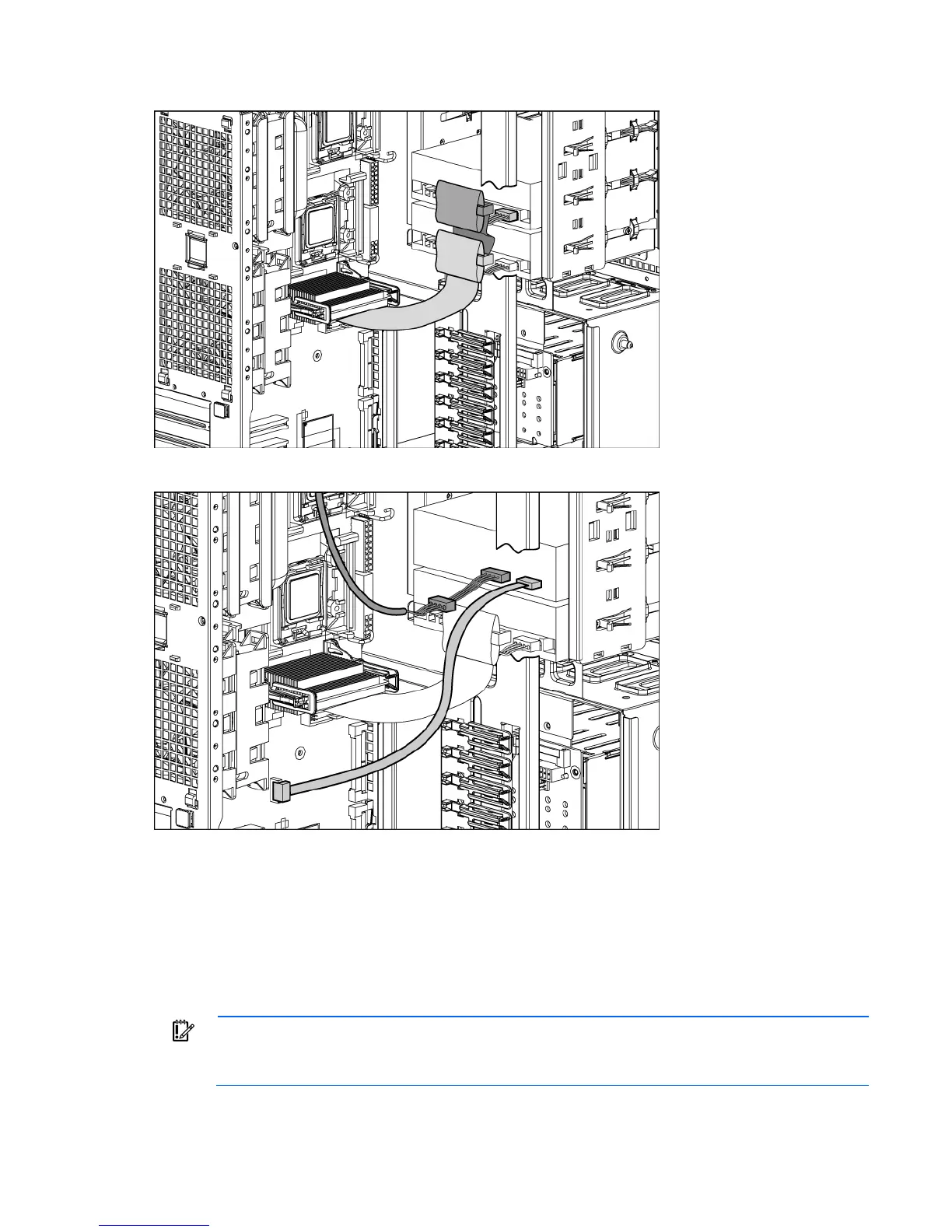

• PATA optical drive cabling
• SATA optical drive cabling
Optional ATA or ATAPI device cabling
This server includes one PATA cable (the Cable Select Cable) that can connect up to two ATA or ATAPI
devices to the system through the integrated PATA controller. This cable has three clearly labeled connectors.
If only one PATA device is connected to the system, it must be secured to the cable connector labeled Drive
0. For all PATA devices, set the configuration jumpers to "Cable Select" or "CS." ATA (PATA) hard drives are
not supported.
IMPORTANT: If the network operating system is Novell NetWare, HP recommends that you
connect the optical drive to the primary PATA channel and to the Drive 0 connector on the PATA
cable.
