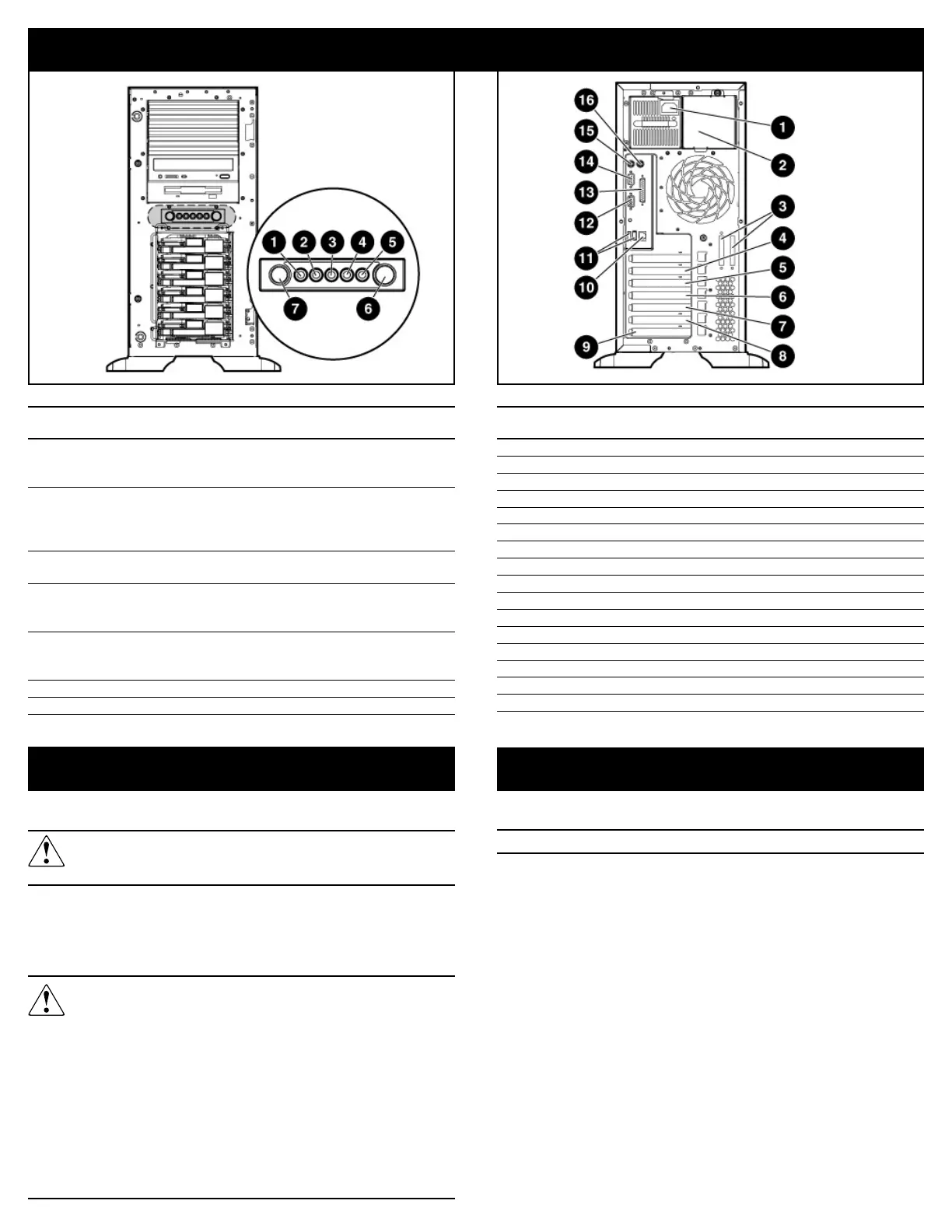

Item Description
1 Power cord connector
2 Optional hot-plug redundant power supply
3 SCSI connector knockouts
4 PCI Express x4 (half length card), slot 1
5 PCI Express x8 (full length card), slot 2
6 64-bit 100 MHz PCI-X slot, bus 9, slot 3
7 64-bit 100 MHz PCI-X slot, bus 9, slot 4
8 64-bit 133 MHz PCI-X slot, bus 6, slot 5
9 64-bit 66 MHz PCI-X slot, bus, 2, slot 6
- RJ-45 Ethernet connector
q USB 2.0 connectors (2)
w Video connector
e Parallel connector
r Serial connector
t Keyboard connector
y Mouse connector
Item Description
1 UID switch and LED Blue = Activated
Flashing = System managed remotely
Off = Deactivated
2 Int system health LED Green = Normal (system on)
Amber = System health is degraded
Red = System health is critical
Off = Normal (system off)
3 Ext system health LED Green = Normal (system on)
Red = Power redundancy failure.
4 NIC link/activity LED Green = Linked to network
Flashing green = Linked with activity
Off = No network connection
5 Power on LED On = Power
Amber = System off power available
Off = No power
6 System Power
7 UID button
Callouts
Follow the steps in this section to set up a tower model server.
WARNING : To reduce the risk of electric shock, fire, or
damage to the equipment, do not plug telephone or
telecommunications connectors into RJ-45 connectors.
1. Connect network cable and any peripheral devices to the server.
2. Connect the power cord to the back of the server.
3. Connect the power cord to the AC power source.
Installing a storage server (tower)
WARNING: To reduce the risk of personal injury or damage
to the equipment:
• Do not disable the power cord grounding plug. The
grounding plug is an important safety feature.
• Plug the power cord into a grounded (earthed) electrical
outlet that is easily accessible at all times.
• Unplug the power cord from the power supply to
disconnect power to the equipment.
• Do not route the power cord where it can be walked on
or pinched by items placed against it. Pay particular
attention to the plug, electrical outlet, and the point where
the cord extends from the server.
To register your product visit the HP Registration web site at:
http://www.register.hp.com
Registering your storage server
