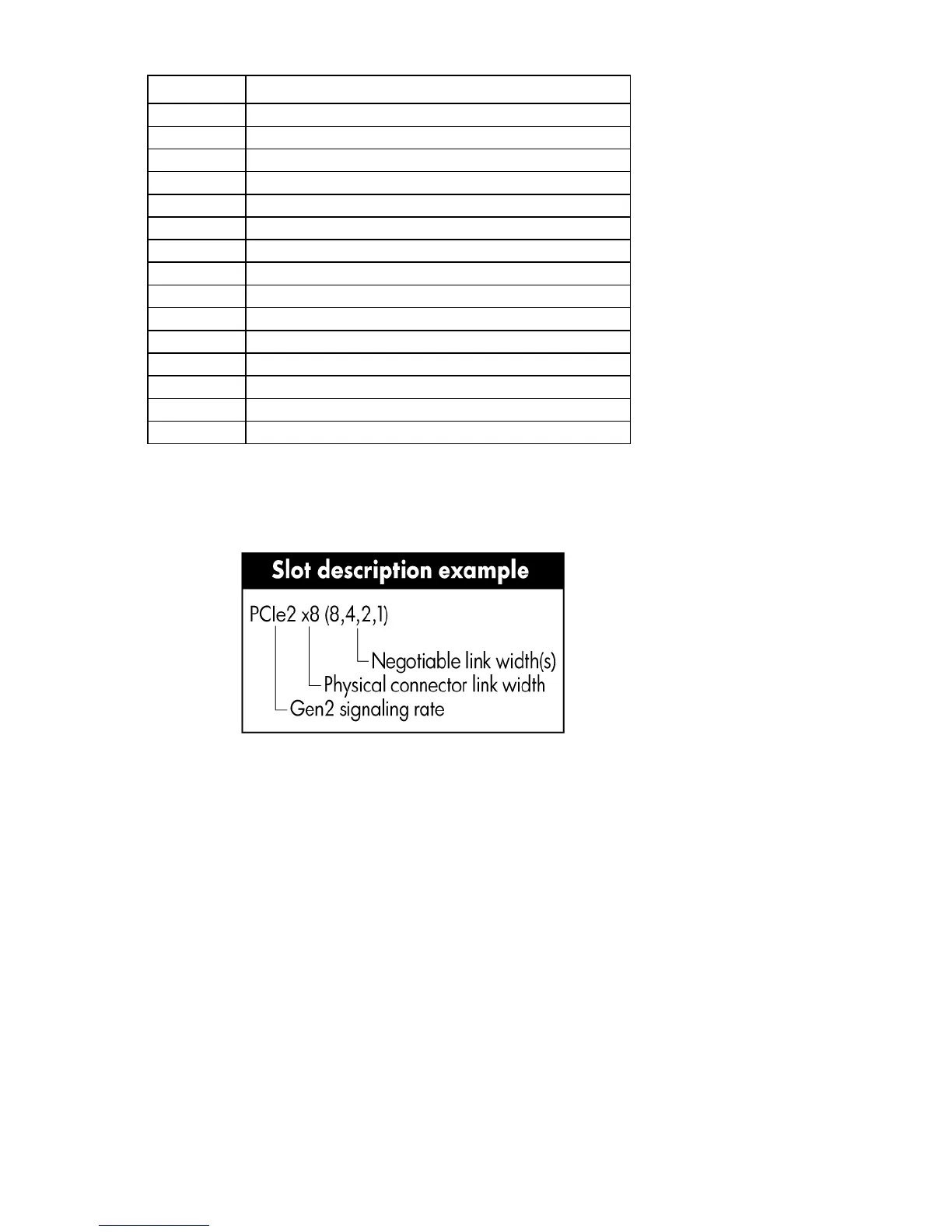

Component identification 12
Item Description
14
TPM connector
15
SATA connectors (6)
Slot 1 PCIe2 x8 (4, 2, 1)¹
17
Slot 2 PCIe2 x8 (4, 2, 1)²
18
10Gb sideband connector (MII 24-pin)
19
Slot 3 PCIe2 x8 (8, 4, 2, 1)³
20
Slot 4 PCIe2 x16 (8, 4, 2, 1) 75W +EXT 75W
4
Slot 5 PCIe2 x8 (4, 2, 1)
22
Slot 6 PCIe2 x8 (4, 2, 1)
23
Internal USB connector
24
Internal USB tape connector
25
System battery
26
System fan 2 connector
27
Processor socket 1
28
System fan 1 connector
¹The SAS expander and the HP NC522SFP Dual Port 10GbE Server Adapter are not supported in slot 1.
²HP recommends the SAS expander is installed in slot 2.
³The HP NC522SFP Dual Port 10GbE Server Adapter is only supported in slot 3.
4
To support options beyond 75W, install the 150W PCIe video/graphics controller power cable option (on page 82).
