DIMM slots

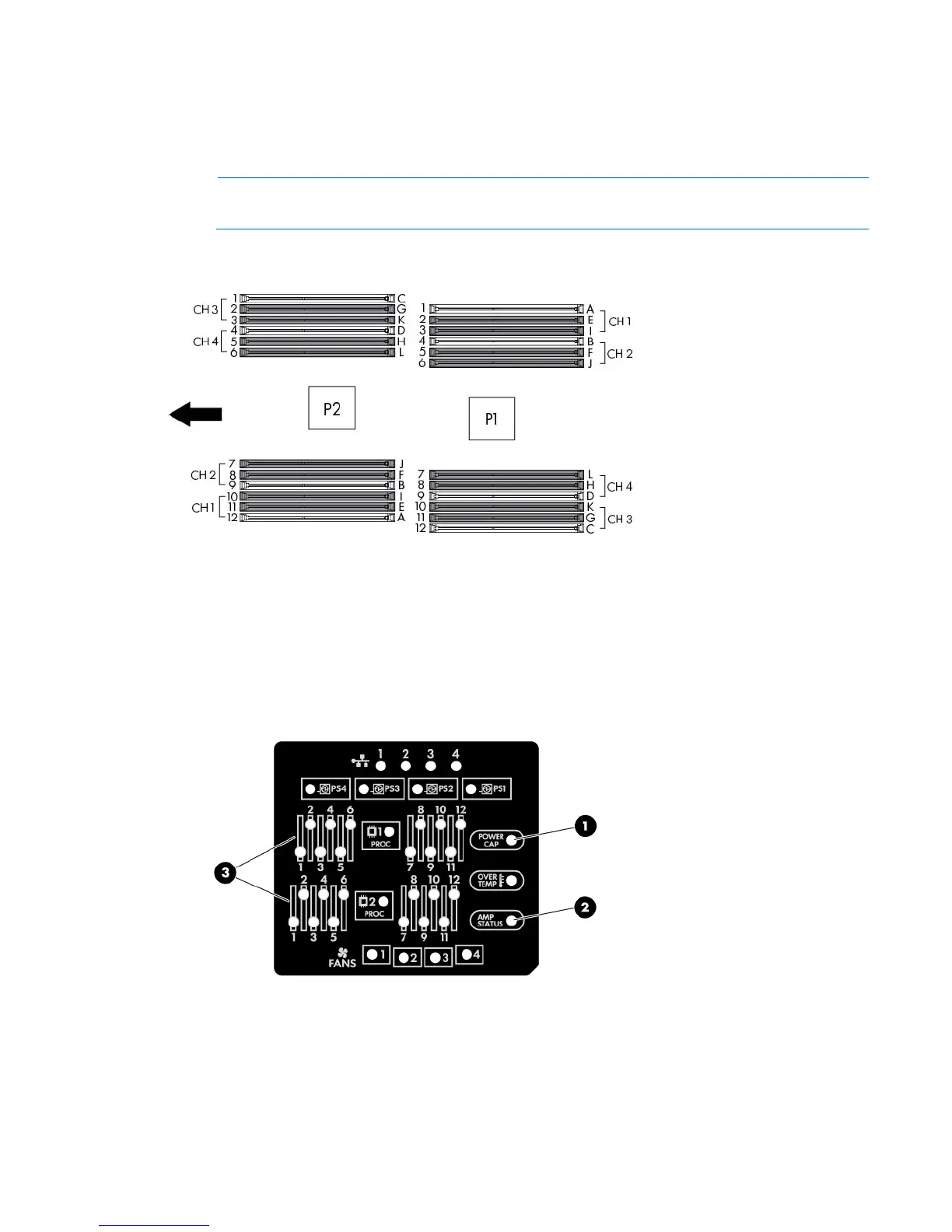

DIMM slots are numbered sequentially (1 through 12) for each processor. The supported AMP modes use the
letter assignments for population guidelines.
NOTE: For proper orientation, the arrow indicates the front of the server.
Systems Insight Display LEDs
The HP Systems Insight Display LEDs represent the system board layout.
