Removal and replacement procedures 60
3.

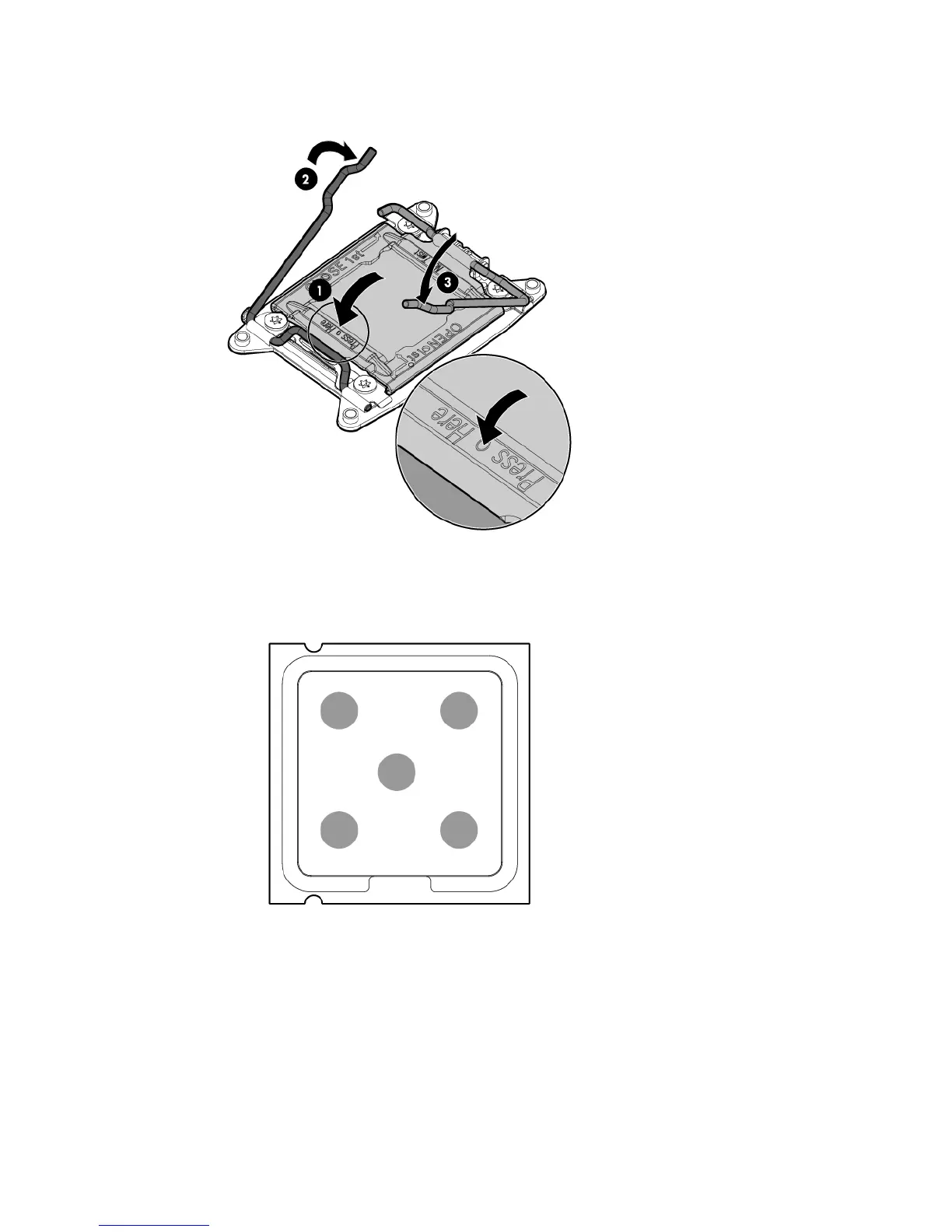

Press and hold the processor retaining bracket in place, and then close each processor locking lever.
Press only in the area indicated on the processor retaining bracket.
4. Use the alcohol swab to remove all the existing thermal grease from the heatsink. Allow the alcohol to
evaporate before continuing.
5. Apply the thermal grease to the top of the processor in the following pattern.
