HP ProLiant ML350p - Page 77

Component identification 77
Item Description Status
2
NIC status LED Solid green = Link to network
Flashing green (1 Hz/cycle per sec) = Network active
Off = No network activity
3
Health LED
Solid green = Normal
Flashing amber = System degraded
Flashing red (1 Hz/cycle per sec) = System critical
Fast-flashing red (4 Hz/cycles per sec) = Power fault**
4
UID button/LED Solid blue = Activated
Flashing blue (1 Hz/cycle per sec) = Remote management or
firmware upgrade in progress
Off = Deactivated
*Facility power is not present, power cord is not attached, no power supplies are installed, power supply failure has
occurred, or the power button cable is disconnected.
**To identify components in a degraded or critical state, see the Systems Insight Display LEDs ("Systems Insight Display
assembly" on page 52), check iLO/BIOS logs, and reference the server troubleshooting guide.

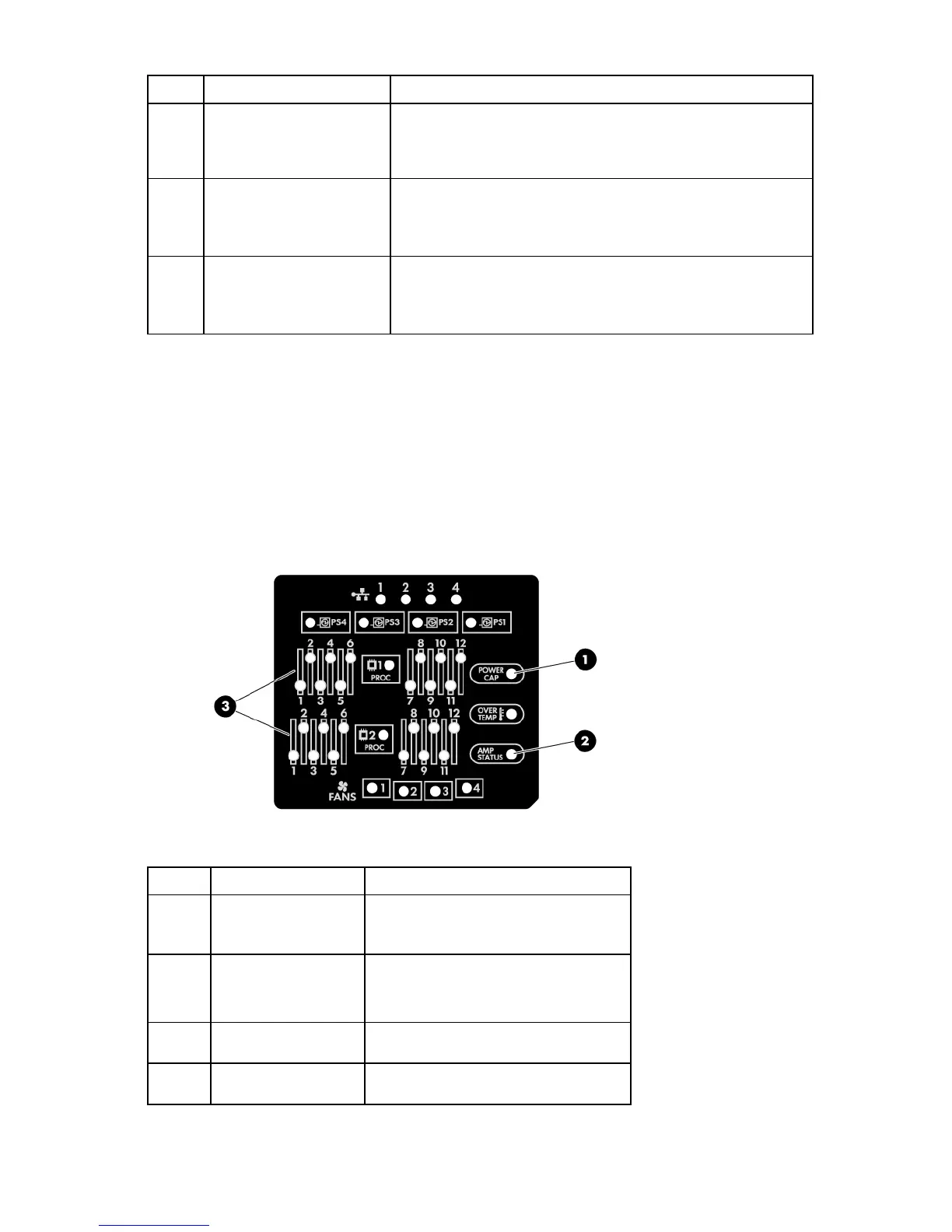

Systems Insight Display LEDs
The HP Systems Insight Display LEDs represent the system board layout.
Item Description Status
1
Power cap To determine Power cap status, see
"Systems Insight Display LED combinations
(on page 78)."
2
AMP Status Green = AMP mode enabled
Amber = Failover
Off = AMP mode disabled
3
DIMM LEDs Amber = DIMM error
Off = Normal
All other LEDs Amber = Failure
Off = Normal
