Component identification 79
IMPORTANT: If more than one DIMM slot LED is illuminated, further troubleshooting is required.
Test each bank of DIMMs by removing all other DIMMs. Isolate the failed DIMM by replacing
each DIMM in a bank with a known working DIMM.

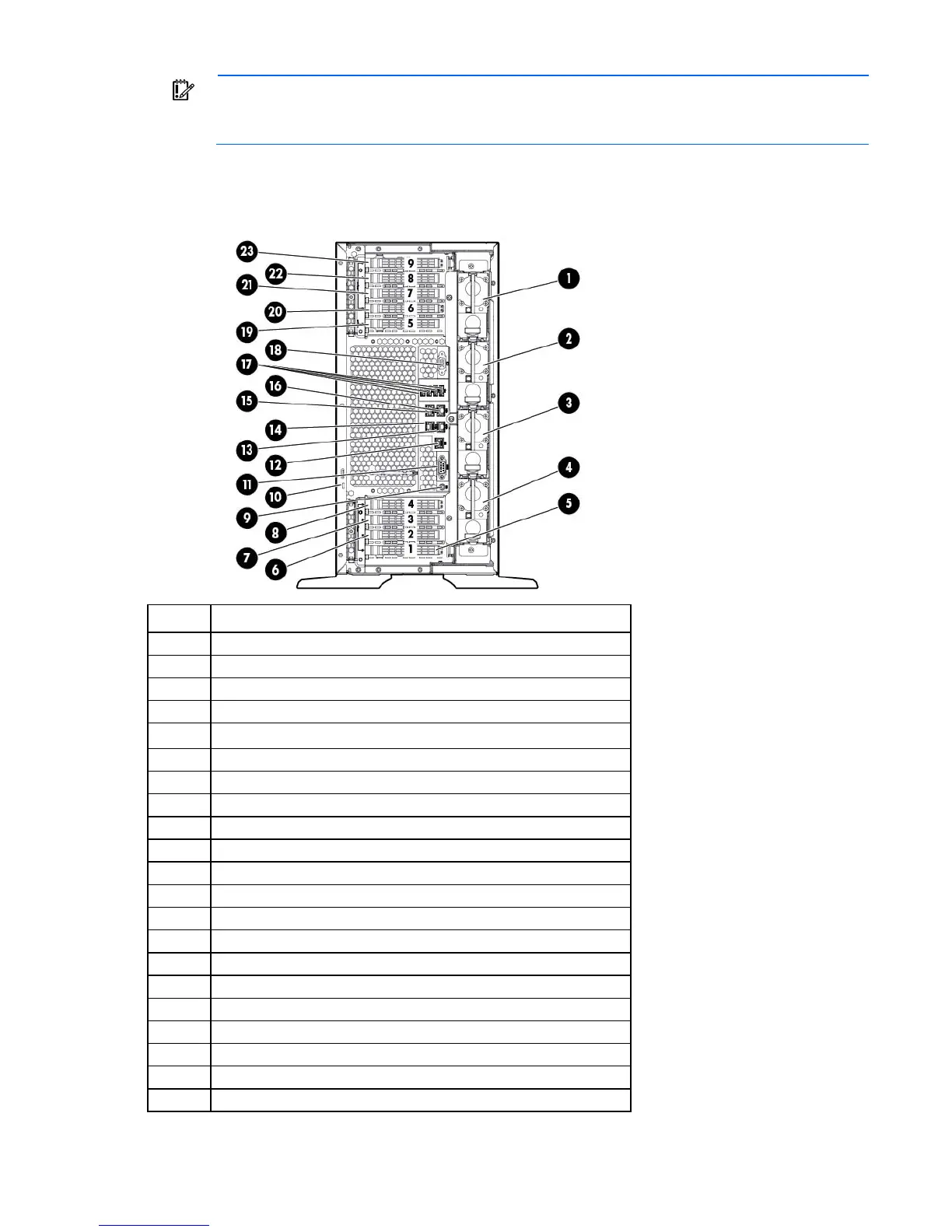

Rear panel components
Item Description
1
Power supply 4
2
Power supply 3
3
Power supply 2
4
Power supply 1
5
PCIe slot 1 (Processor 1)
6
PCIe slot 2 (Processor 1)
7
PCIe slot 3 (Processor 1)
8
PCIe slot 4 (Processor 1)
9
UID button/LED
10
Kensington security lock
11
Serial connector
12
iLO connector
13
NIC connector 3
14
NIC connector 4
15
NIC connector 2
16
NIC connector 1
17
USB connectors (4)
18
Video connector
19
PCIe slot 5 (Processor 2)
20
PCIe slot 6 (Processor 2)
21
PCIe slot 7 (Processor 2)
