Component identification 86
1 - Amber 2 - Green 3 - Green Interpretation
On
On On The cache module microcontroller has failed.

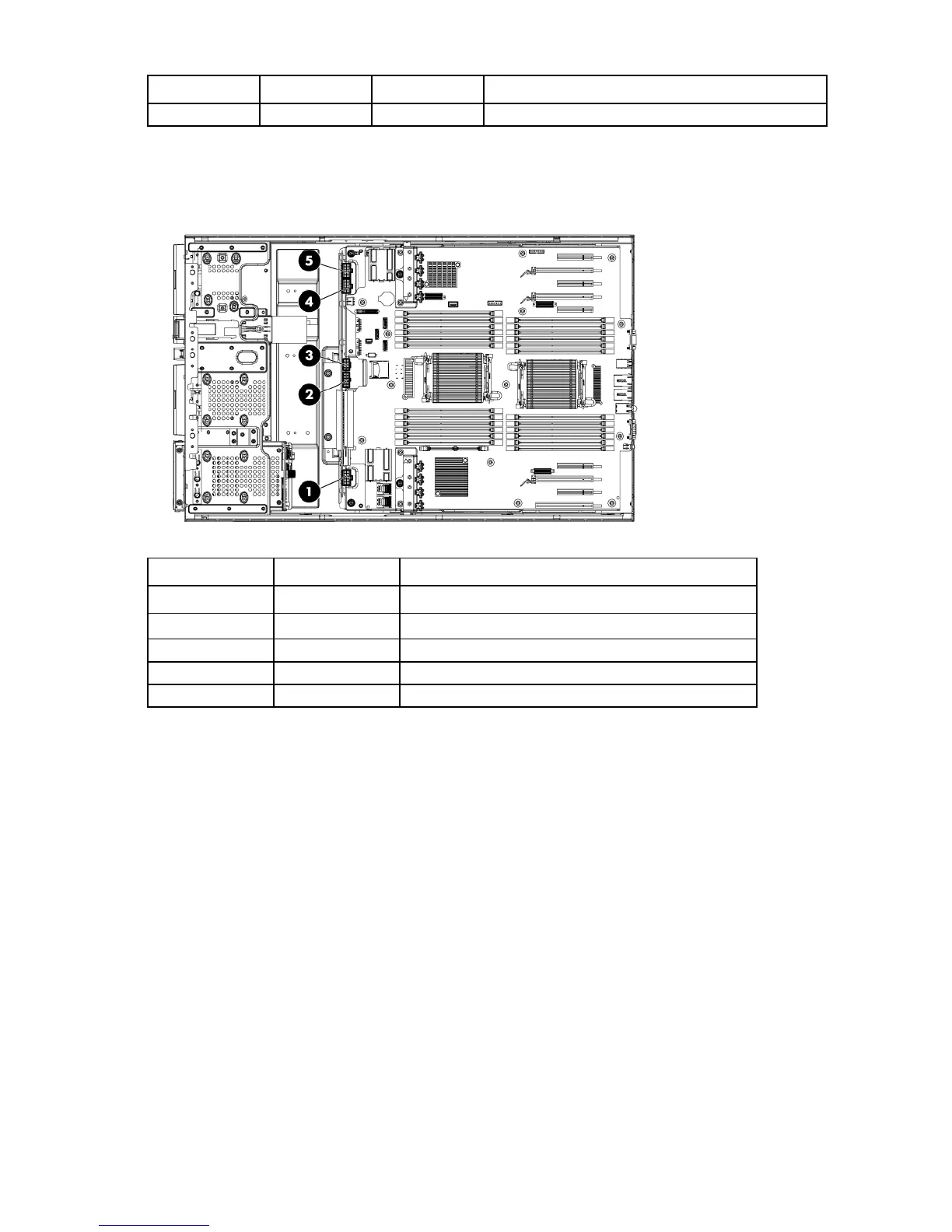

RPS riser board connectors
Item Connector Description
1
J7 Graphic card power connector
2
J9 Drive backplane bay 1/optical drive power connector
3
J5 Drive backplane bay 2 power connector
4
J6 Drive backplane bay 3 power connector
5
J8 Graphic card power connector
