Removal and replacement procedures 62
11.

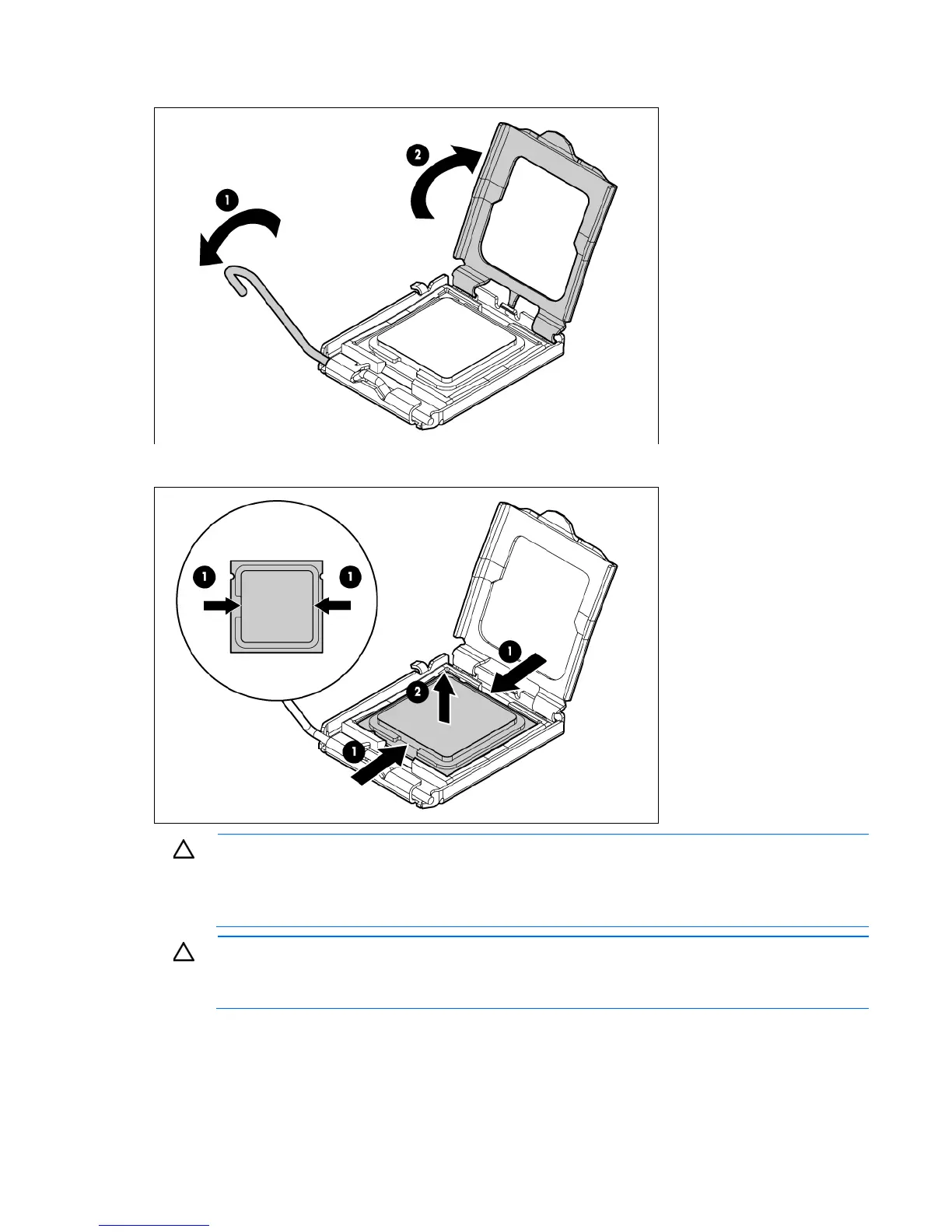

Open the processor retaining latch and the processor socket retaining bracket.
12. Using your fingers, remove the processor from the failed system board.
CAUTION: To avoid damage to the system board:
• Do not touch the processor socket contacts.
• Always install the processor socket cover after removing the processor from the socket.
• Do not tilt or slide the processor when lowering the processor into the socket.
CAUTION: To avoid damage to the processor:
• Handle the processor only by the edges.
• Do not touch the bottom of the processor, especially the contact area.
13. Loosen the two thumbscrews securing the system board to the chassis.
14. Slide the system board toward the front of the chassis to release it from the two retaining guides.
