Removal and replacement procedures 64
b.

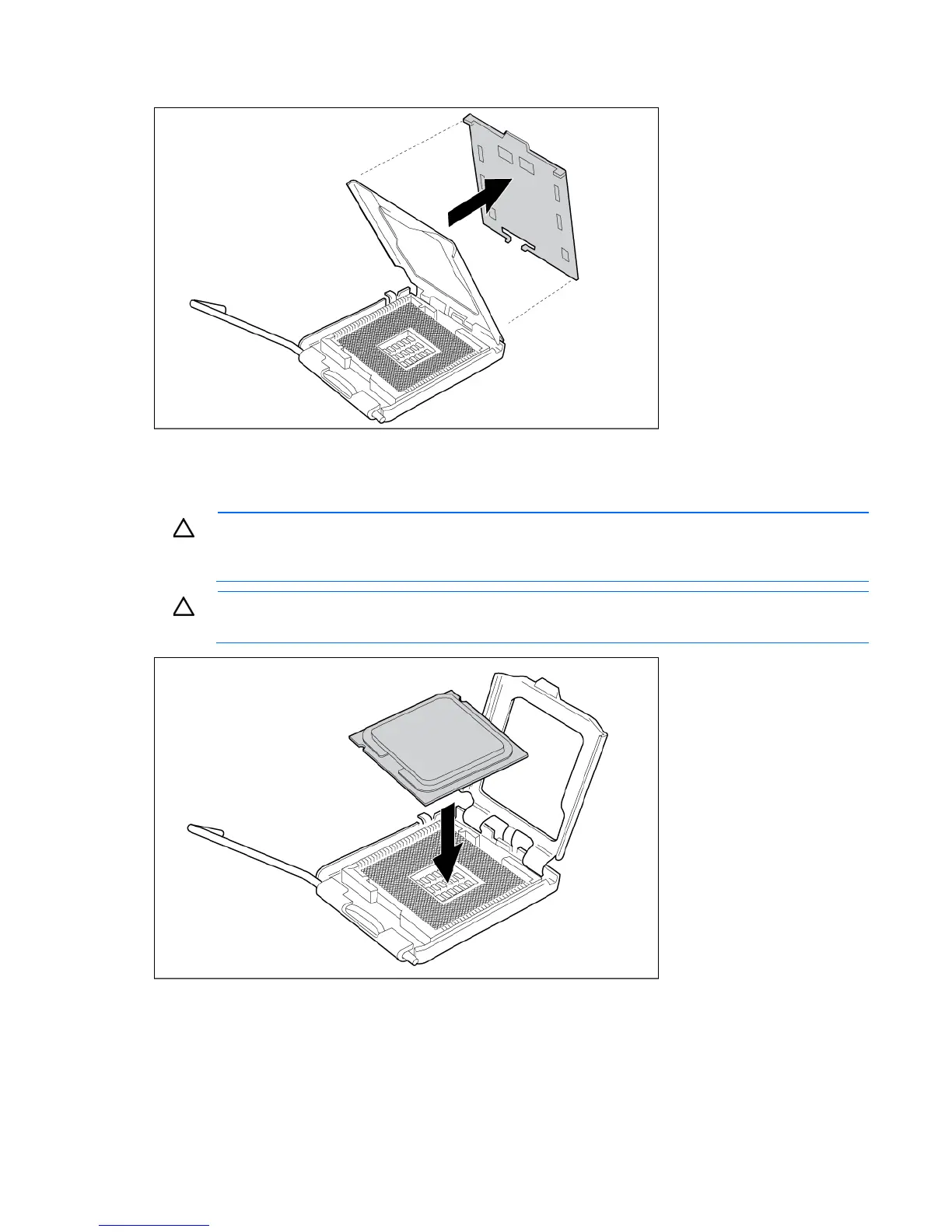

Remove the processor socket protective cover.
3. Install the processor socket cover onto the processor socket of the failed system board. The cover
protects the socket during shipping when the failed board is returned.
4. Install the processor onto the spare system board.
CAUTION: The processor is designed to fit one way into the socket. Use the alignment guides on
the processor and socket to properly align the processor with the socket. Refer to the server hood
label for specific instructions.
CAUTION: Always install the processor parallel to the system board to avoid damage to the
pins.
