HP ProLiant ML370 Generation 5 - Page 86

Server component identification 86
Online/activity
LED (green)
Fault/UID LED
(amber/blue)
Interpretation
Flashing regularly
(1 Hz)
Off Do not remove the drive. Removing a drive may terminate the
current operation and cause data loss.
The drive is rebuilding, or it is part of an array that is undergoing
capacity expansion or stripe migration.
Flashing
irregularly
Amber, flashing
regularly (1 Hz)
The drive is active, but a predictive failure alert has been received
for this drive. Replace the drive as soon as possible.
Flashing
irregularly
Off The drive is active, and it is operating normally.
Off
Steadily amber A critical fault condition has been identifi
ed for this drive, and the
controller has placed it offline. Replace the drive as soon as
possible.
Off
Amber, flashing
regularly (1 Hz)
A predictive failure alert has been received for this drive. Replace
the drive as soon as possible.
Off
Off The drive is offline, a spare, or not configured as part of an array.
FBDIMM slots

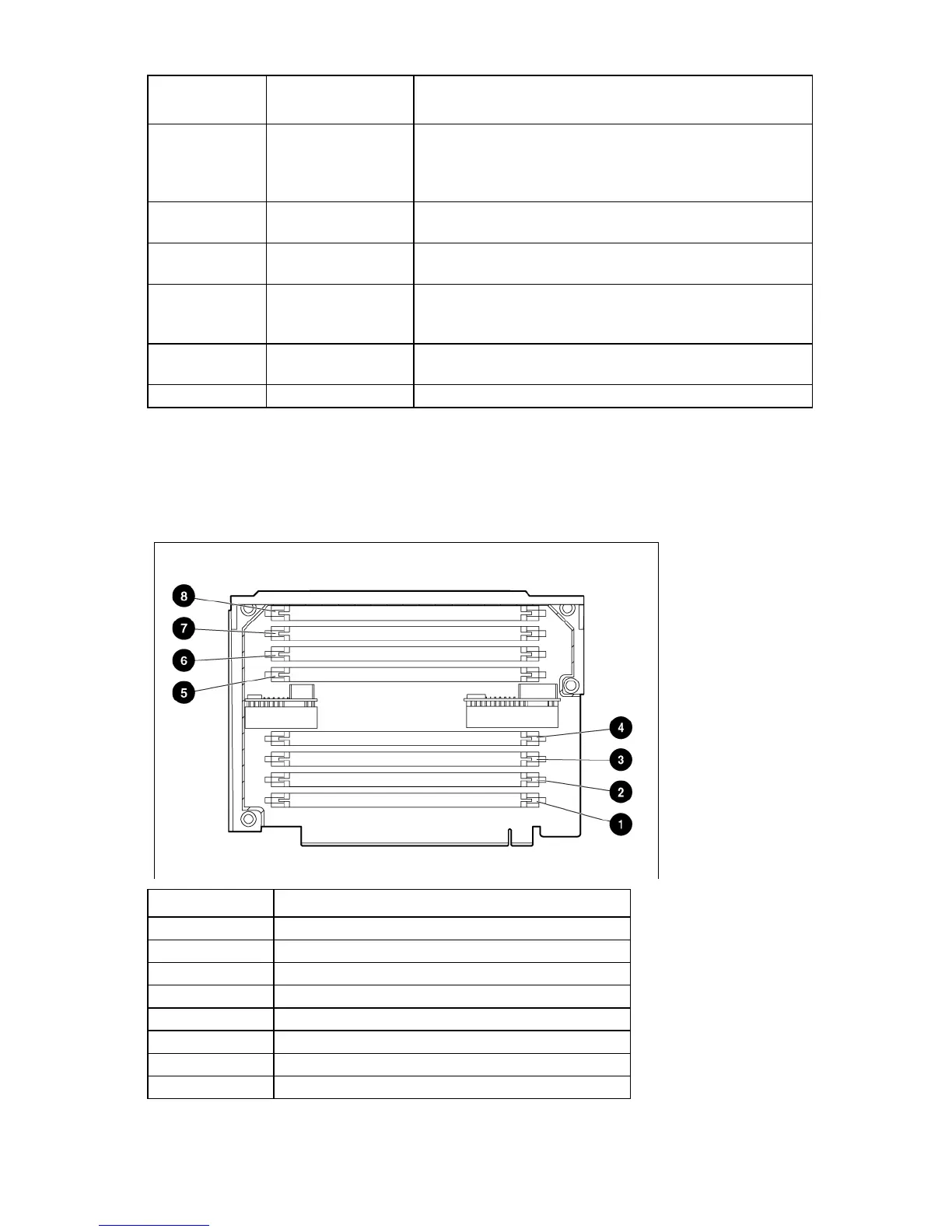

The server supports two memory boards, each containing eight slots with paired banks identified by the
letters A through D.
Item Description
1
FBDIMM slot 1, bank A
2
FBDIMM slot 2, bank B
3
FBDIMM slot 3, bank C
4
FBDIMM slot 4, bank D
5
FBDIMM slot 5, bank A
6
FBDIMM slot 6, bank B
7
FBDIMM slot 7, bank C
8
FBDIMM slot 8, bank D
