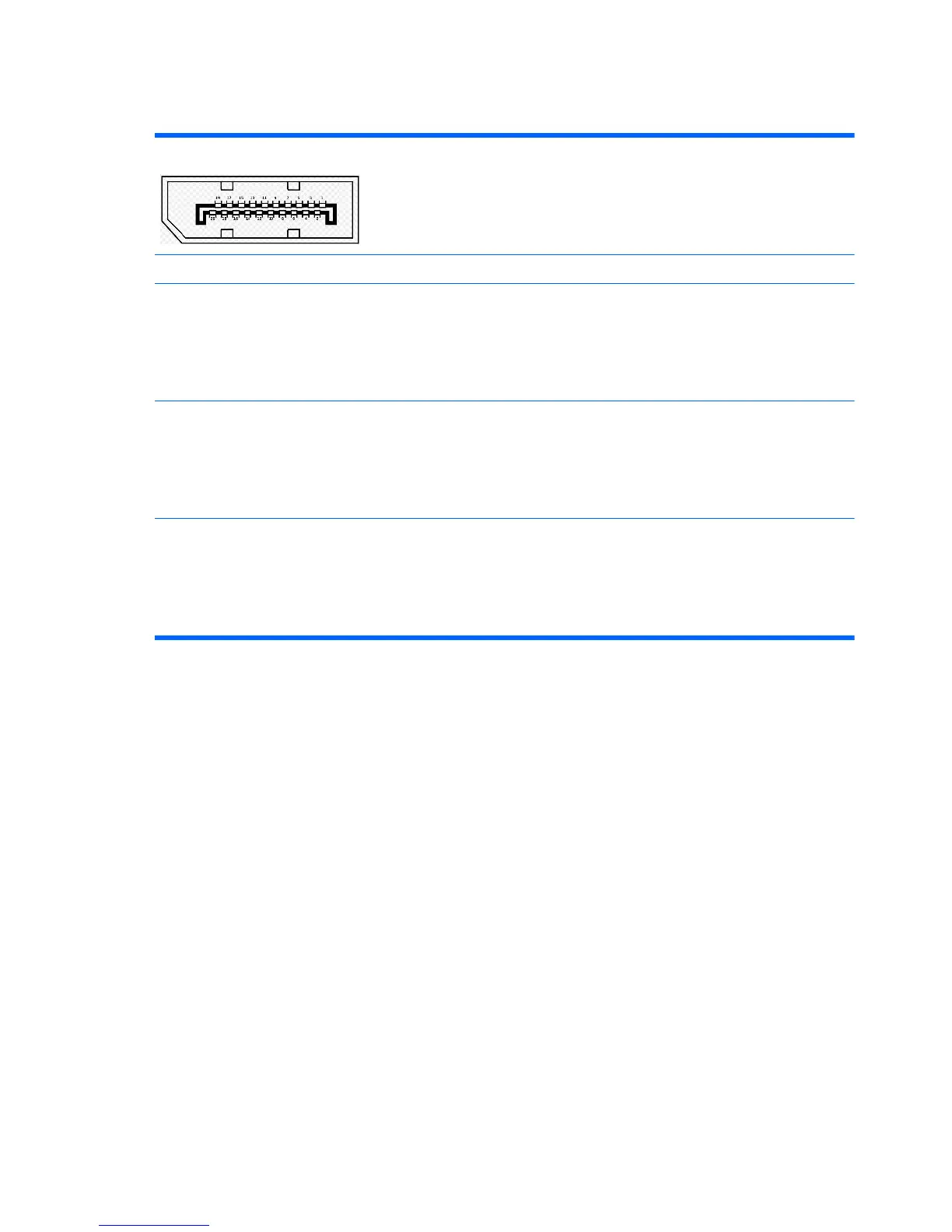

DisplayPort Connector
Connector and Icon
Pin Signal Pin Signal
1
2
3
4
ML_Lane 0 (p)
Ground
ML_Lane 0 (n)
ML_Lane 1 (p)
13
14
15
16
CONFIG1
CONFIG2
AUX CH (p)
Ground
5
6
7
8
Ground
ML_Lane 1 (n)
ML_Lane 2 (p)
Ground
17
18
19
20
AUX CH (n)
Hot Plug
Return
DP_PWR
9
10
11
12
ML_Lane 2 (n)
ML_Lane 3 (p)
Ground
ML_Lane 3 (n)
92 Appendix A Connector Pin Assignments
