2. Disconnect the drive cables from the rear of the drive, or, if you are removing a media card
reader, disconnect the USB and 1394 cables from the system board as indicated in the following
illustrations.
NOTE: On some models, the media card reader does not include a 1394 port or cable.

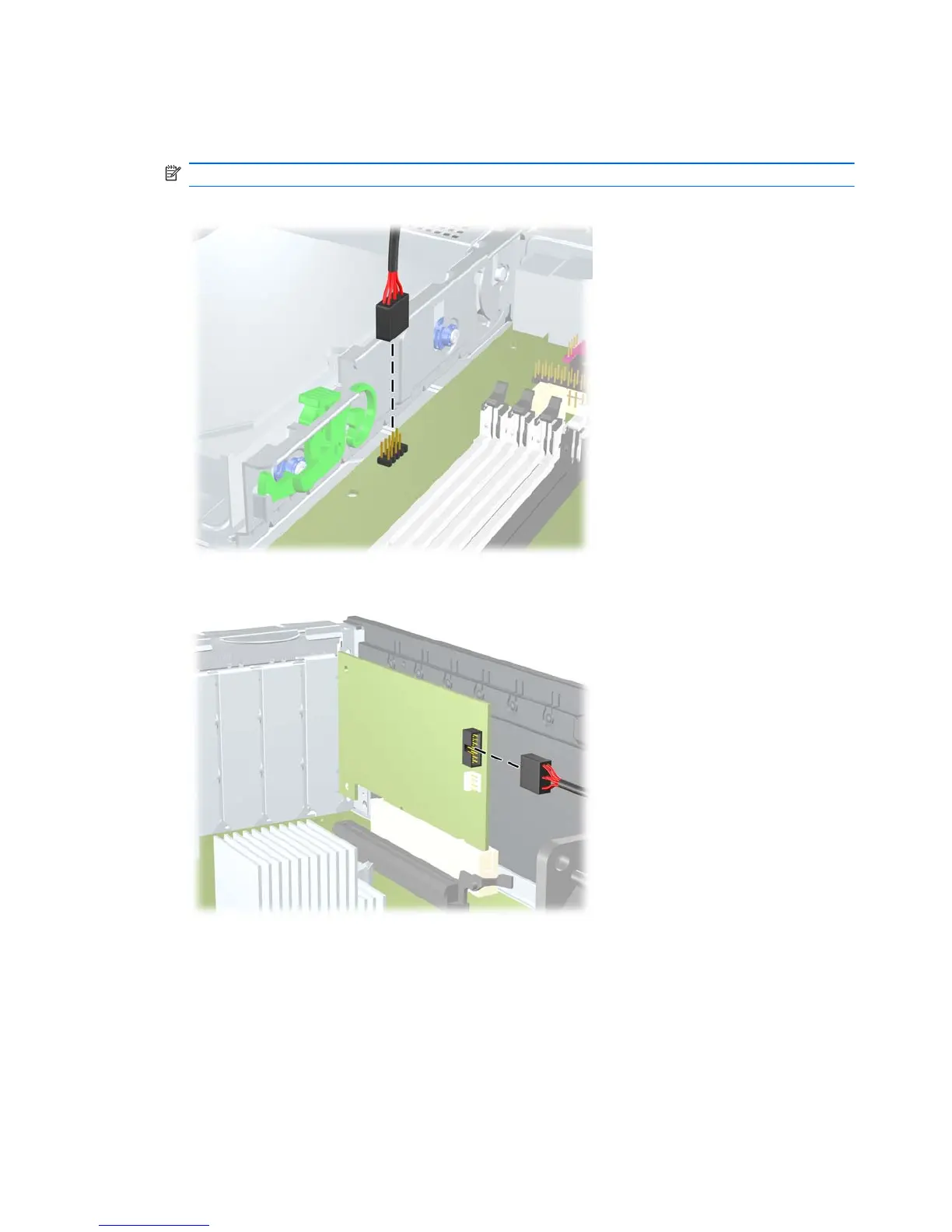

Figure 5-27 Disconnecting the Media Card Reader USB Cable
Figure 5-28 Disconnecting the Media Card Reader 1394 Cable
56 Chapter 5 Removal and Replacement Procedures
