Hardware Reference Guide www.hp.com 2-9
Hardware upgrades
4. Install a PCI card 1 into the PCI riser card as shown in the
following illustration.
5. Install the optional PCI Expansion Module chassis cover 2.
6. Secure the optional PCI Expansion Module chassis cover with the
two chassis screws 3.

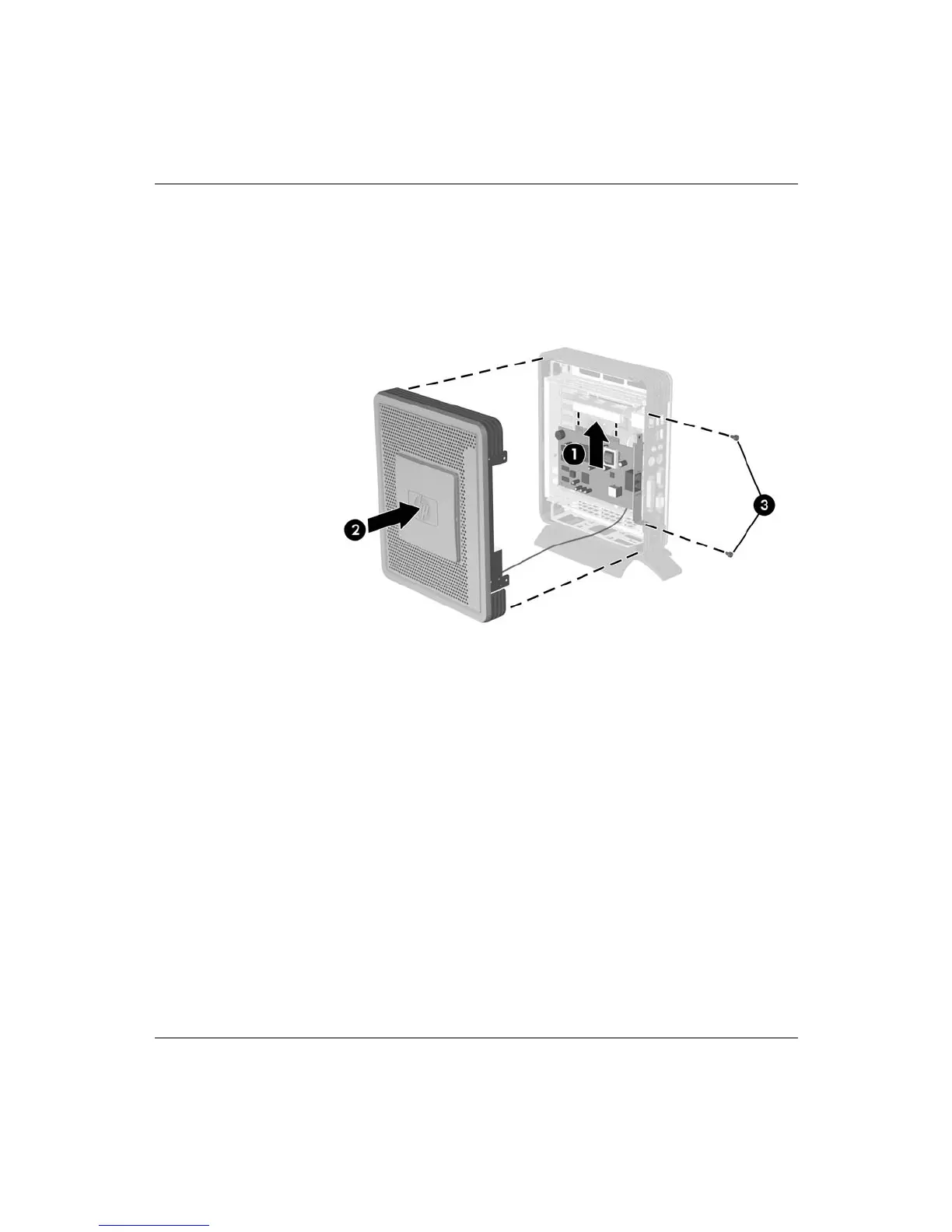

Installing a PCI card and PCI Expansion Module chassis cover
7. Complete steps 6 through 10 of the “General hardware
installation sequence” on page 2-1.
To remove the PCI Expansion Module, reverse the previous
procedure.
