To install the secondary flash memory module:
1. Locate the secondary flash memory module socket on the system board.

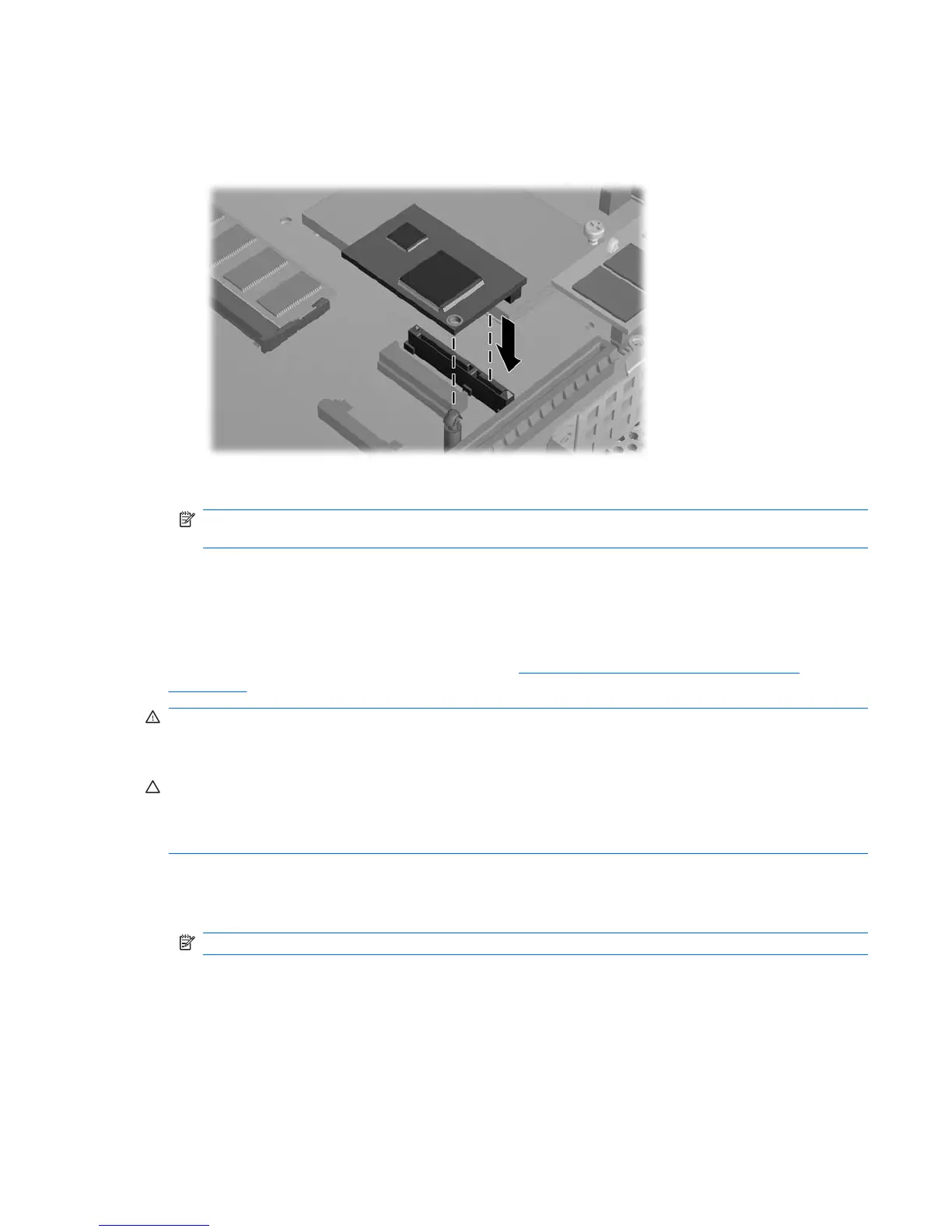

Figure 2-9 Installing the Secondary Flash Memory Module
2. Insert the flash memory module into the socket on the system board.
NOTE: A flash memory module can be installed in only one way. Line up the hole in the flash
memory module with the retention post on the system board.
3. Press the module connectors firmly into the flash memory module socket, making sure that the
retention post on the system board comes up through the hole in the module.
Installing a Second SO-DIMM
Before beginning the replacement process, review General Hardware Installation Sequence
on page 12 for procedures you should follow before and after installing or replacing hardware.
WARNING! You must remove the left side panel to access the SO-DIMM compartment. Before
removing the side access panel, ensure that the thin client is turned off and the power cord is
disconnected from the electrical outlet.
CAUTION: Static electricity can damage the electronic components of the computer or optional cards.
Before beginning these procedures, ensure that you are discharged of static electricity by briefly
touching a grounded metal object. When handling a memory module, be careful not to touch any of the
contacts. Doing so may damage the module.
To install the SO-DIMM:
1. Slide the serial number tab out of the way.
NOTE: Be sure not to lose this tab.
ENWW Installing Thin Client Options 21
