WARNING! To reduce risk of personal injury from hot surfaces, allow the internal system components
to cool before you touch them.
8. Locate the memory compartment on the system board.
9. If a PCIe card is installed, remove it.

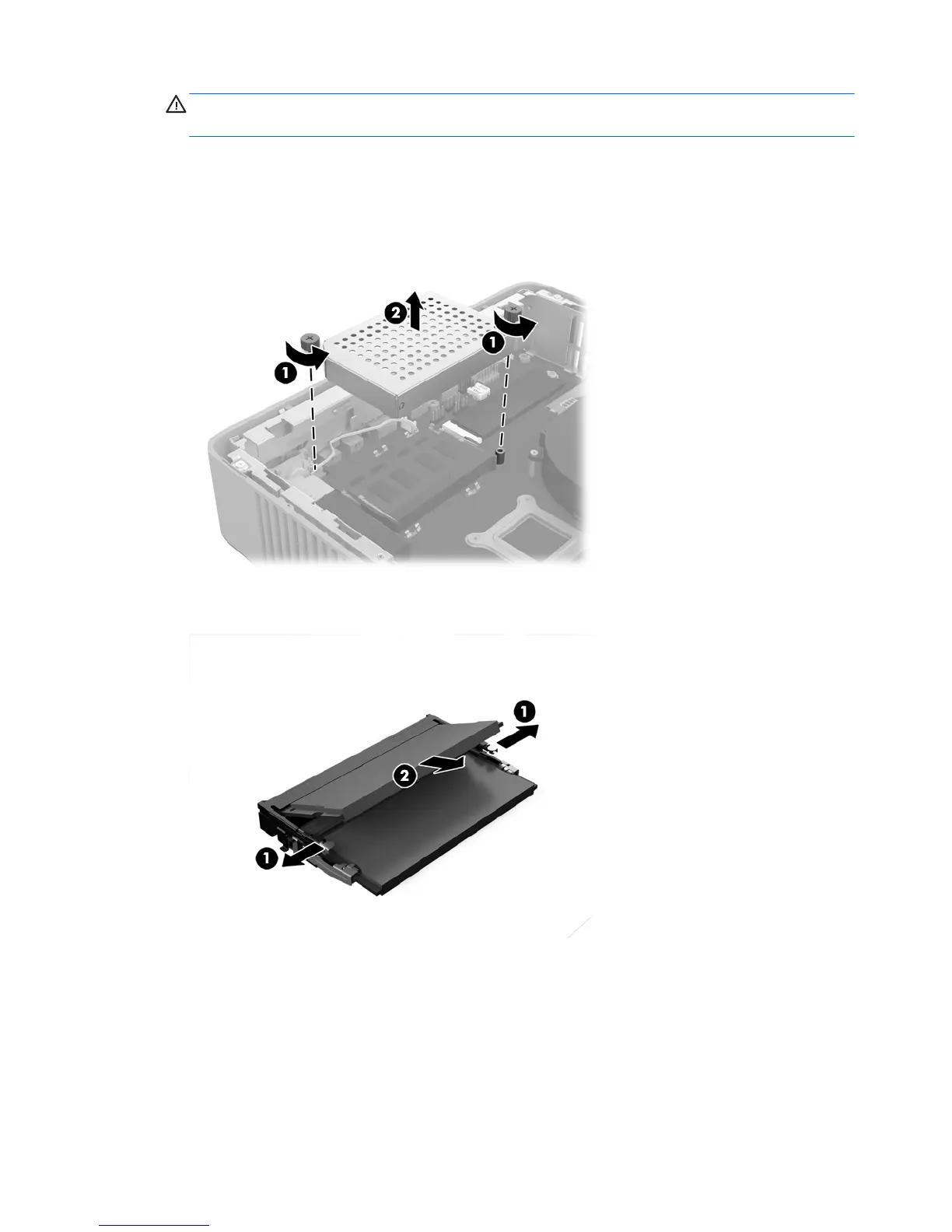

10. Loosen the two captive screws (1) securing the memory compartment cover.
11. Lift the memory compartment cover out of the chassis (2).
12. To remove a SODIMM, press outward on the two latches on each side of the SODIMM (1), rotate the
SODIMM up, and then pull the SODIMM out of the socket (2).
16 Chapter 2 Hardware changes
