HP TouchSmart IQ500 - Desktop PC

Upgrading and Servicing Guide 15

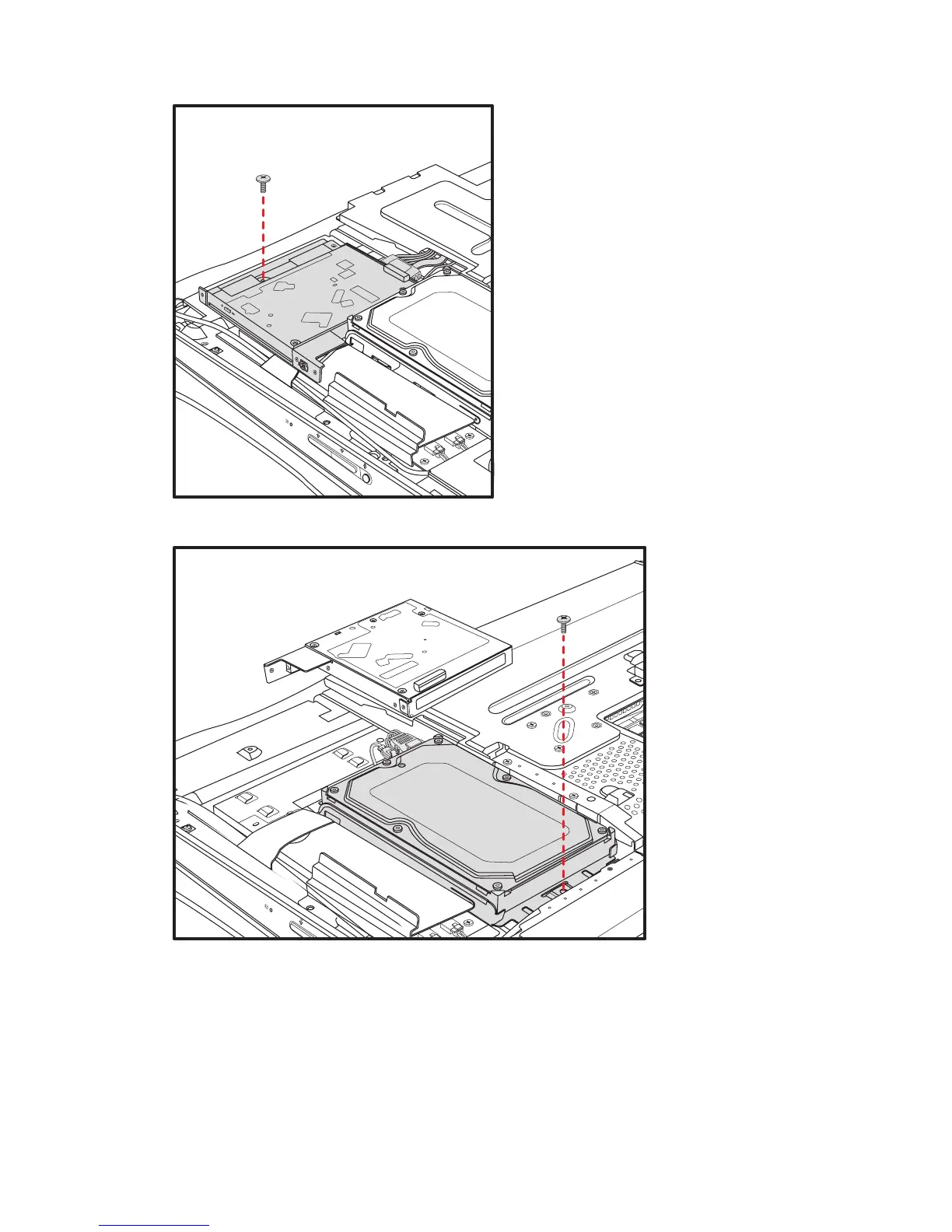

7 Remove the screw that secures the optical disc drive to the chassis, and then slide the drive toward the
center of the computer to move it out of the way. You do not need to remove the optical drive cables.
8 Remove the screw that secures the hard disk drive cage to the chassis.
